Douglas Fir Plywood

Visually Striking

Attractive & Decorative

Wild Grain Pattern

A speciality decorative panel

High grade rotary cut faces

One-piece face veneers

Popular with designers & architects

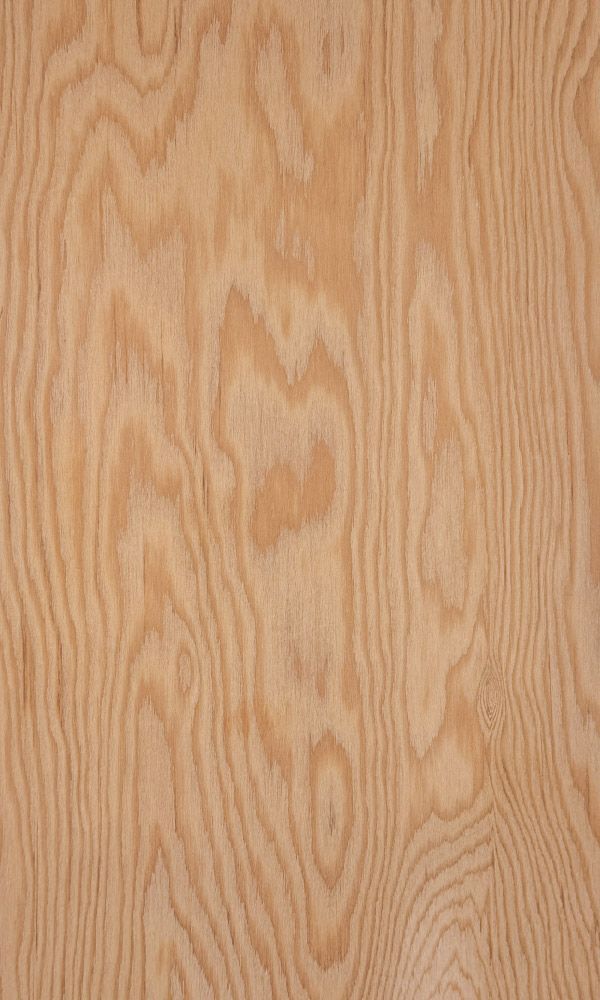

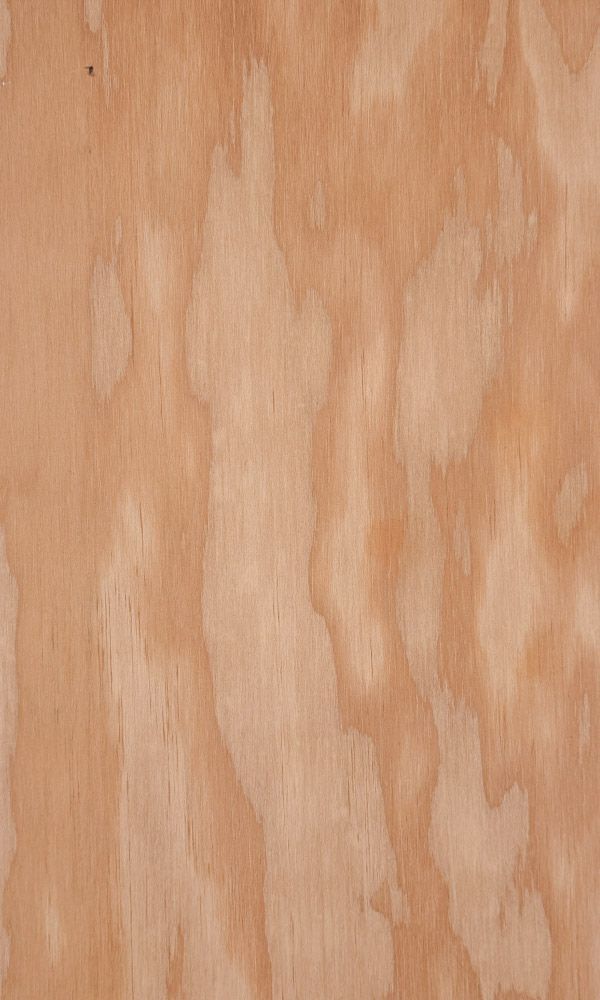

Douglas Fir has a wild grained, impactful appearance which is very much in fashion. An attractive panel that's ideal for visually striking interior walls and ceiling panels. The decorative faces set Douglas Fir apart and this speciality panel is seeing a surge in popularity with designers & architects.  Canadian production with rotary cut plies and one piece face veneers.

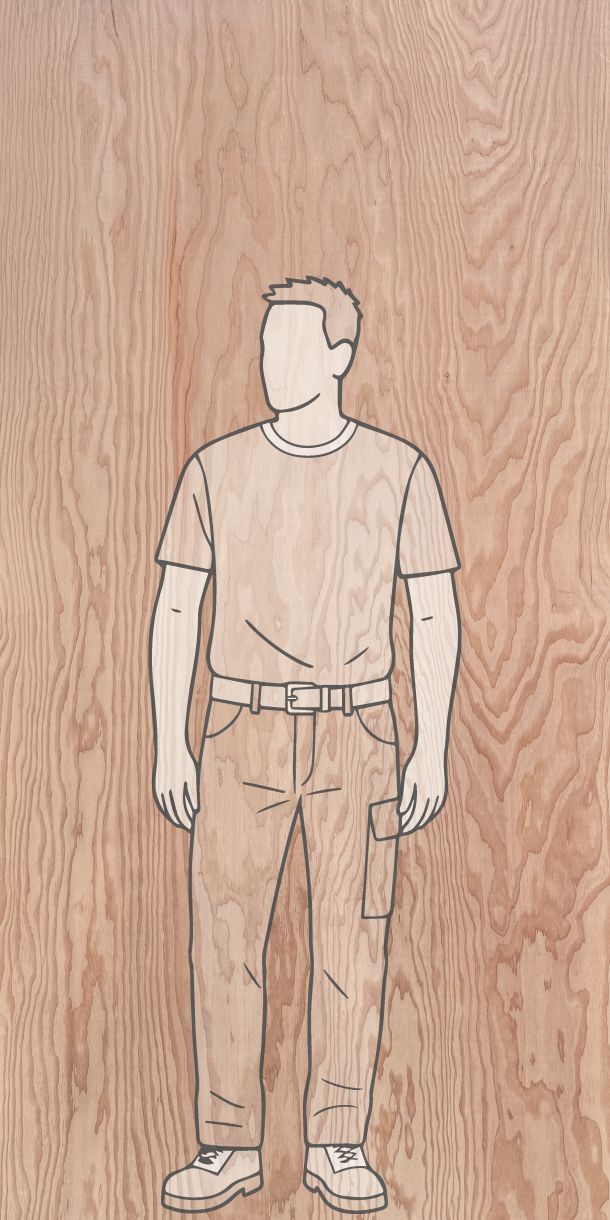

Examples of full size 8ft x 4ft panels

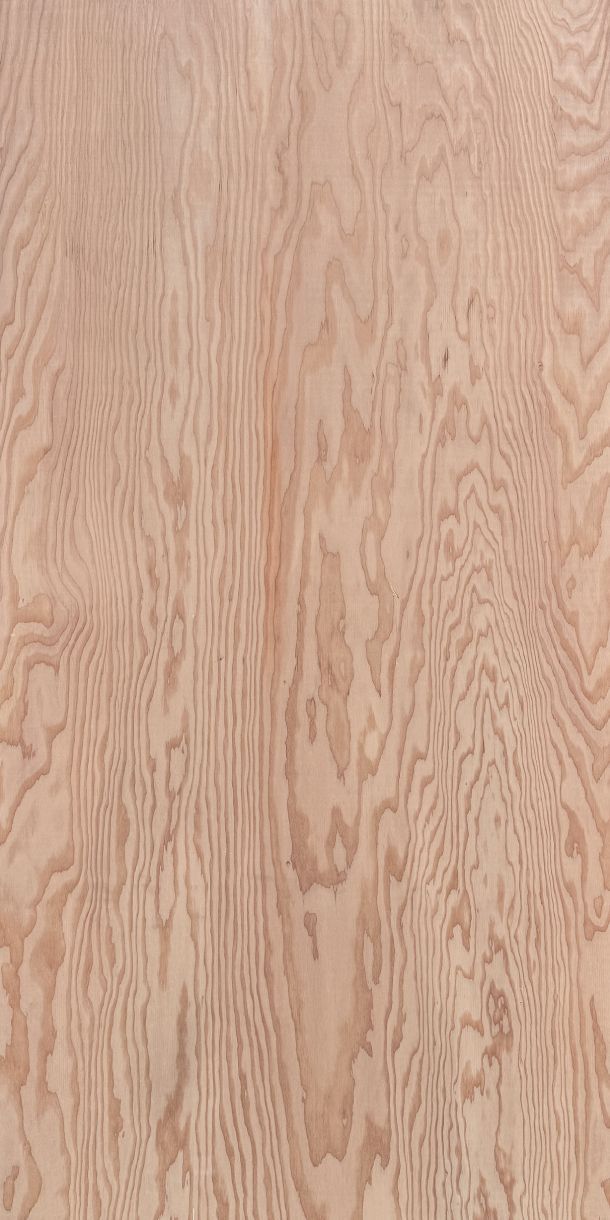

Douglas Fir Plywood
Douglas Fir Plywood 19mm
Canadian Douglas Fir Plywood

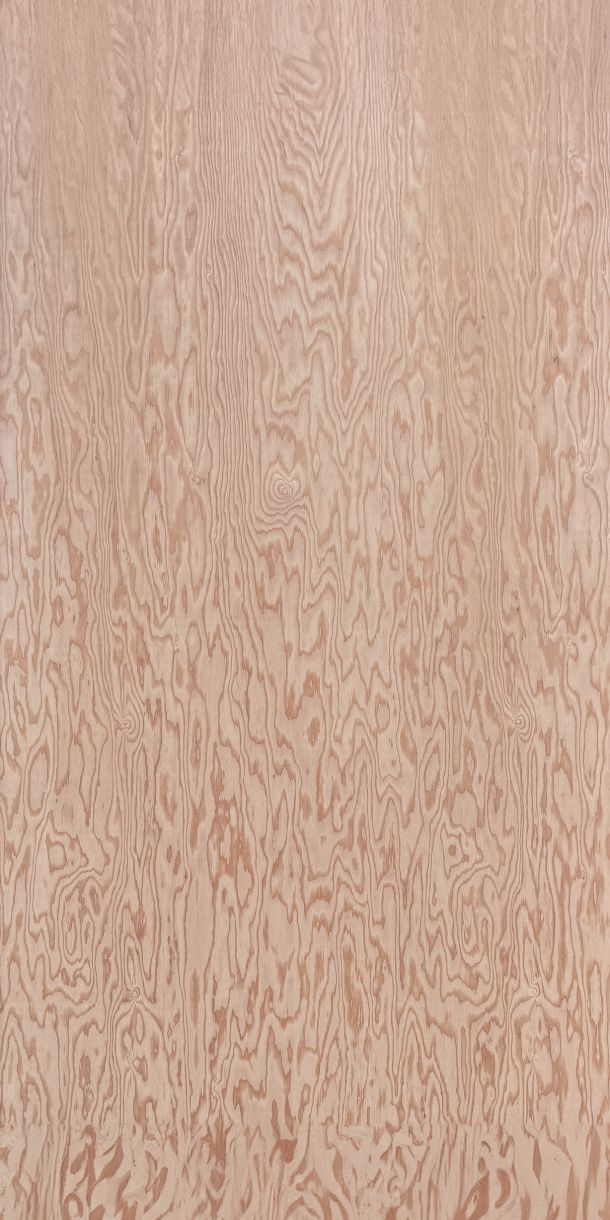

Douglas Fir Plywood Good One Side

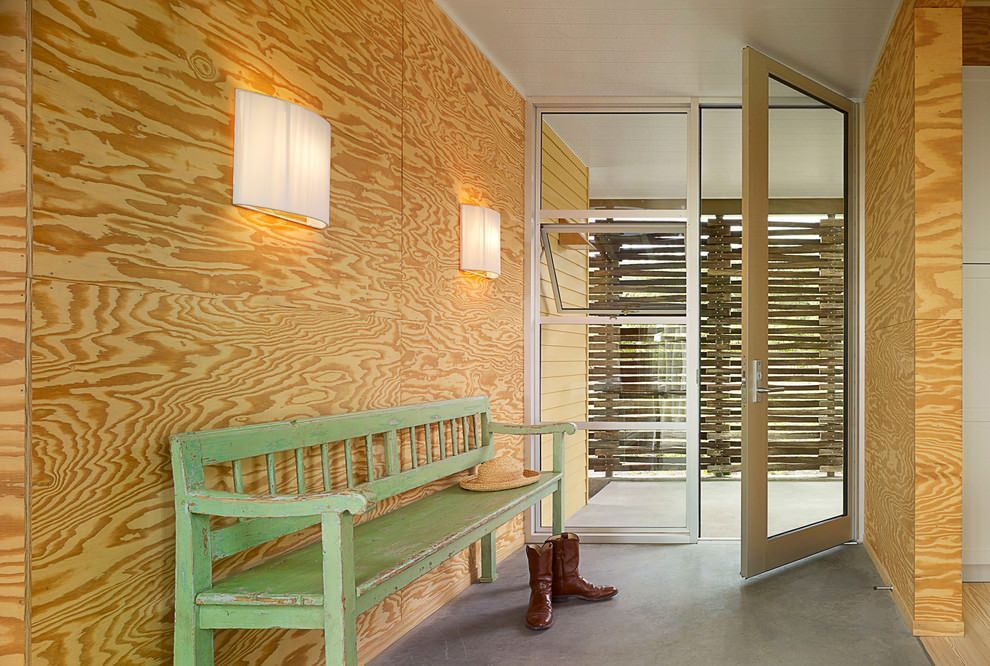

Internal Wall Cladding
Ceiling Panels

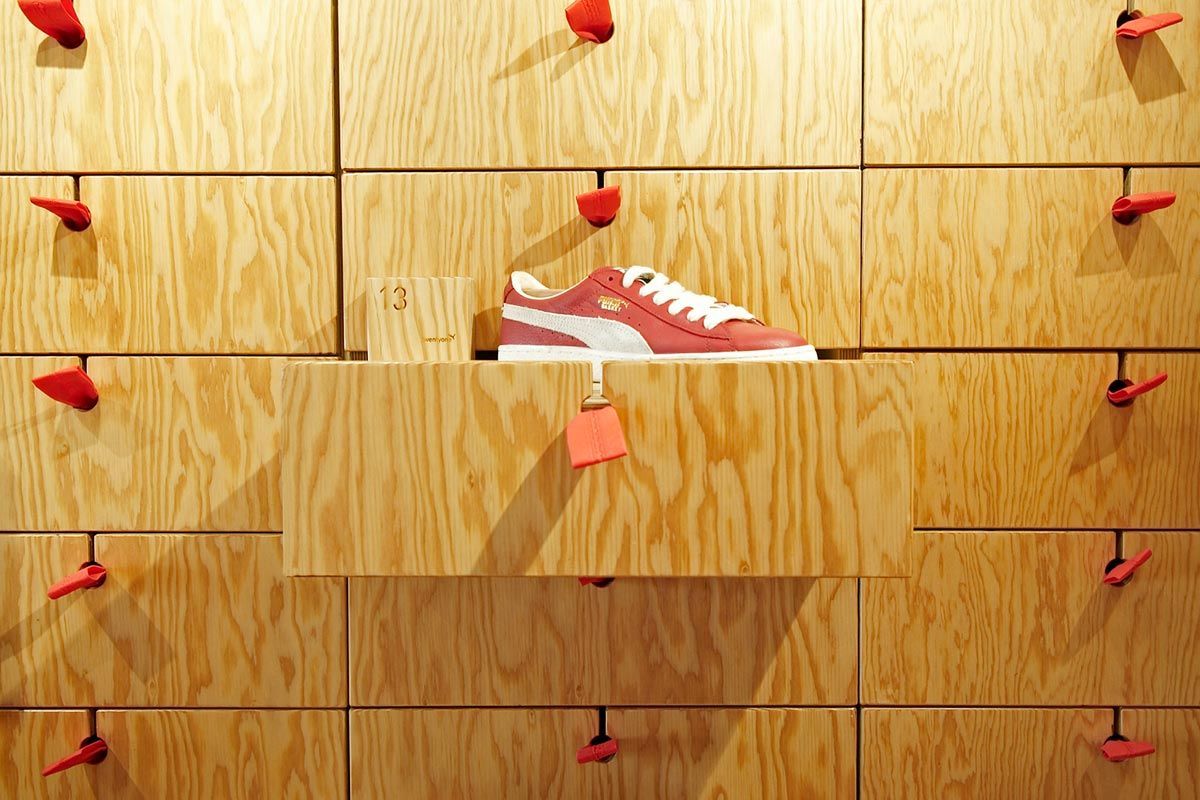

Joinery & Shopfitting
Furniture

Feature Walls

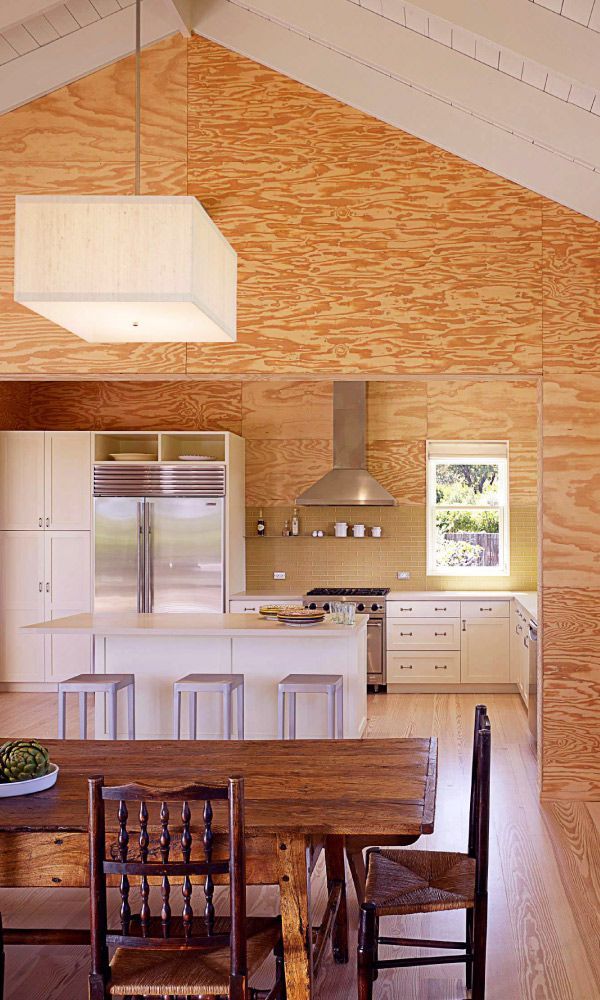

Douglas Fir Plywood kitchen interior

Retail Spaces

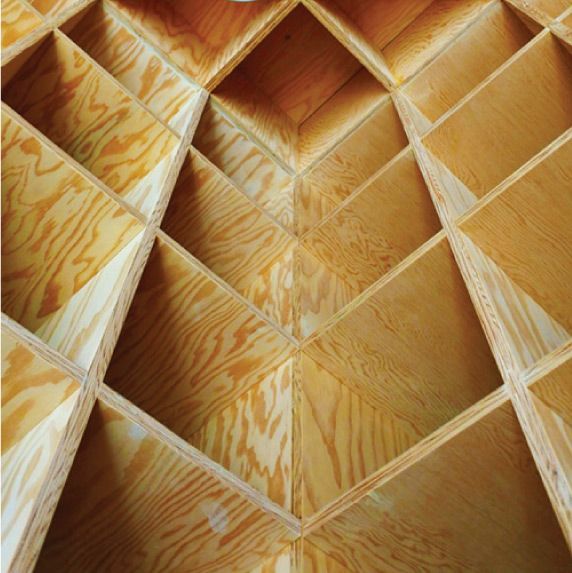

Douglas Fir Plywood Shop Shelf Units and Display

Cupboards & Cabinets

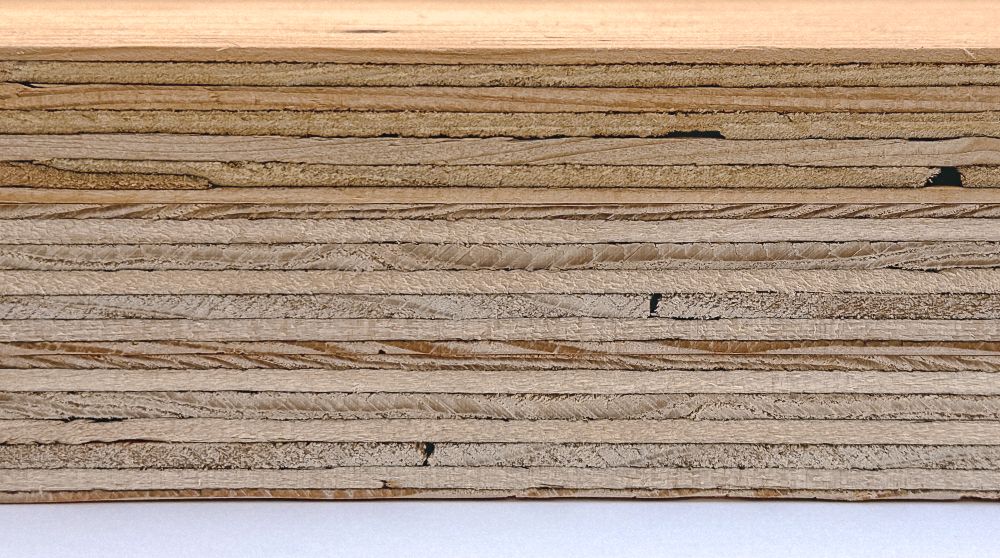

Core Details

The plywood core is Douglas Fir throughout

C grade inner plies allow for knots and core gaps

Specifications

Thickness

11mm - 1/2 inch (half inch) 5 ply construction

19mm - 3/4 inch (three quarter inch) 7 ply construction

24mm - 1 inch, 9 ply construction (good two sides only)

Panel Size

2440 x 1220 (8ft x 4ft) Long-grain

Faces

Good One Side (GOS or G1S)

Grade A/C (front face grade A / reverse grade C)

Good face repaired with wooden plugs and epoxy/wooden putty


Good Two Sides: GTS - G2S

A/A (front and reverse faces grade A)

Both faces repaired with wooden plugs and epoxy/wooden putty


Good Face Definition

One piece face veneer, occasional hairline splits filled with wood putty, wood patches used to repair knots. Small pin knots allowed. Sanded faces.

Core Construction

Douglas Fir throughout


Improved Core

Higher core quality, reduced defects - small voids permitted

Weight

540kg per M3*

11mm 2440 x 1220 weighs 17.7kg

19mm 2440 x 1220 weighs 30.5kg

24mm 2440 x 1220 weighs 38.4kg

*approximate and subject to natural variation

Bonding

EN314-2 class 3 exterior conditions


Bonded with waterproof phenolic resin which exceeds requirements of EN314-2 for Class 3: non covered exterior (replaces WBP specification)

Certification

PEFC environmentally certified
EN 13896 - Formaldehyde class E1

CPD Compliant (Construction Products Directive) 1224-CPD-0002

Datasheet

Download PDF

Case Studies

Jack Windmill

DF Plywood in domestic fit-out

Malin & Goetz

Doug-Fir Ply Display Units

Puma Boxpark

Doug-Fir Ply Retail Display

Finger In The Nose

Doug-Fir Ply Shop Furniture

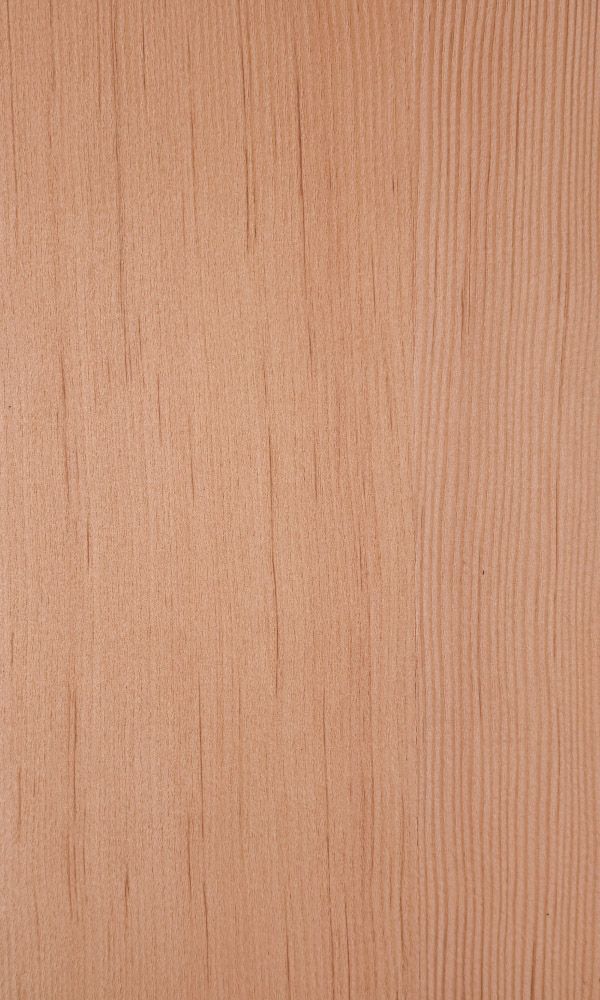

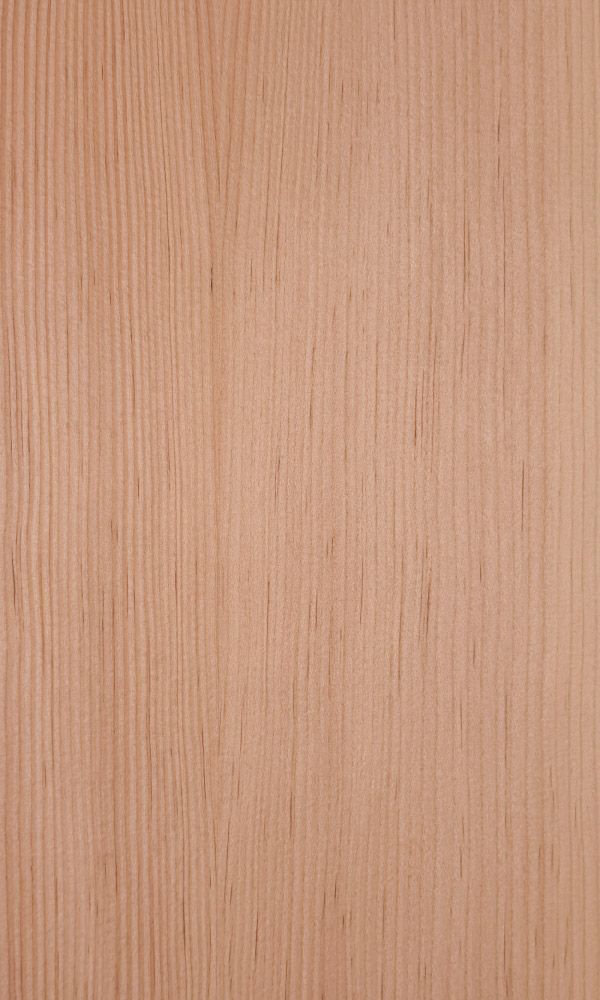

Douglas Fir Quarter Cut Veneers

Quarter cut veneer achieves a plain and straight grain that more closely resembles solid timber grain pattern, when compared to plywood. If your project involves both timber lengths and sheet materials, using a quarter cut veneered panel ensures a more consistent appearance.


Our veneers are bonded to birch plywood, pine plywood or an MDF core.


View the comparison images below:

Visit our veneer page for more details

Fire Rated Douglas Fir Plywood

Fire rated Douglas Fir plywood to

EN13501-1 Euroclass B s1, d0

Conta-burn fire rated plywood

A high quality and durable finish available in matt or satin


Factory applied coating system


A clear absorption based fire retardant with decorative lacquer


Complies with most new project requirements for BS EN13501 surface spread of flame and reaction to fire

Compare Douglas Fir to European Pine

European Decorative Pine has a similar grain pattern and is manufactured specifically for decorative use

Douglas Fir compared to Pine
Pine plywood compared to Douglas Fir plywood

Prices

Request a Quote

or contact us

01992 410333

mail@spp.co.uk

We deliver throughout the UK
