Thick Birch Plywood
Extra Thick Plywood Sheets
Nationwide delivery of packs and commercial volumes to trade customers
For details and prices:
40mm plywood - 45mm plywood - 50mm plywood
Birch Throughout Core
European Production
Applications
Flooring
Stage floor or any heavy weight bearing structure
Joinery
Plywood doors, door frames, stair treads, cupboards
Shopfitting
General fit-out applications, shelving and stands
Furniture
Desktops, worktops, benches
Baffle Boards
Cut to strips
Acoustic baffle boards or acoustic fins
Thickness & Packing
| Thickness | Large Pack | Small Pack | Plies | 8x4 weight |
|---|---|---|---|---|
| 50mm plywood | 12 | - | 37 | 102kg |
| 45mm plywood | 13 | - | 33 | 92kg |
| 40mm plywood | 15 | 10 | 29 | 82kg |
| 35mm plywood | 17 | 11 | 25 | 72kg |
| 30mm plywood | 20 | 12 | 21 | 61kg |
| 27mm plywood | 22 | 14 | 19 | 55kg |
| 24mm plywood | 25 | 16 | 17 | 49kg |
Plies
The number of laminations
1.4mm thick, laid-up with grain alternating at 90 degrees
Packing
Quantities shown are standard mill packing
For special order items, pack quantities can be altered
Thickness & Packing
| Thickness | Large Pack | Small Pack |
|---|---|---|
| 50mm plywood | 12 | - |
| 45mm plywood | 13 | - |
| 40mm plywood | 15 | 10 |
| 35mm plywood | 17 | 11 |
| 30mm plywood | 20 | 12 |
| 27mm plywood | 22 | 14 |
| 24mm plywood | 25 | 16 |
Packing
Quantities shown are standard mill packing
For special order items, pack quantities can be altered
Plies
The number of laminations
1.4mm thick
laid-up with grain alternating at 90 degrees
| Thickness | Plies | 8x4 weight |
|---|---|---|
| 50mm plywood | 37 | 102kg |
| 45mm plywood | 33 | 92kg |
| 40mm plywood | 29 | 82kg |
| 35mm plywood | 25 | 72kg |
| 30mm plywood | 21 | 61kg |
| 27mm plywood | 19 | 55kg |
| 24mm plywood | 17 | 49kg |
Panel Sizes
Sizes available from the mill
(Bespoke cut sizes also available)
| Width (mm) | Lengths (mm) |
|---|---|
| 1220 or 1250 | 2440 / 2500 / 2745 / 3000 / 3050 / 3340 / 3660 / 4000 |
| 1500 or 1525 | 2440 / 2500 / 2745 / 3000 / 3050 / 3340 / 3660 / 4000 |
| 1830 or 1850 | 3050 / 3340 / 3660 / 3850 |
| 2150 | 3050 / 3340 / 3850 / 4000 |
Availability
Usually In Stock
50mm, 40mm, 35mm
1220 x 1220 BB/BB Birch Plywood

Other sizes and thickness: forward order only
Minimum quantity: full packs per thickness
Contact us for current lead-times
Face Grades
Offered in BB/BB only
Higher face grades from European mills are no longer commercially available
Decorative Face Grades
When manufacturing thicker panels, such as 50mm, 45mm and 40mm the pressing machine has a narrow clearance.
As the panels are manually slid out of the press, the risk of scratching or denting the faces is high.
Overlaid Options

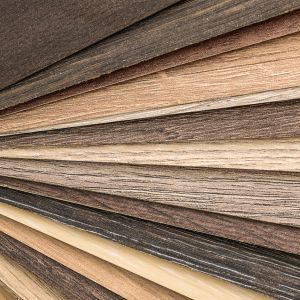

Thick panels can be overlaid with decorative veneers or laminates
White melamine faces are available on forward order from the mill
(max panel size 1525 x 3050)

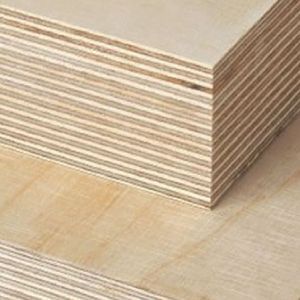

Specifications
Birch Plywood
Weight
640-700 kg/m³
Bonding Quality
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Moisture Content
10% (+/- 2%) to EN315 and DIN 68705
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Cutting Service
Cut to size & CNC machined panels
We offer a full cutting and processing service
Router, drill, chamfer or machining
Edges are sealed with external paint
For more information on our cutting & machining services
Links
More information on veneers, laminates and birch plywood specifications
