Smooth Phenol Plywood
Phenol Faced Smooth Two Sides Birch Plywood
Nationwide delivery of packs and commercial volumes to trade customers
For details and prices:
Smooth Both Sides
Functional and Hardwearing
Cut to size & machining service available
Birch Plywood Core
120g, 220g, 240g or 440g Phenolic Film
Edges sealed in water-proof paint to prevent moisture ingress
A hard-wearing panel for concrete formwork, transport industry & construction
Applications
Flooring
Stage Floors, Internal Flooring
Farming / Livestock
Poultry House / Pullet House
Sheep Pens / Pig Pens / Kennels
Vehicle & Transport Lining
Van interiors & Trailer Beds
Cut to size & edge sealing service
Concrete Formwork
Shuttering Plywood & Formwork Panels
Known as Riga-Form or Wisa-Form
Further details can be found HERE
Thickness & Packing
| Thickness | No. of Plies | Small Packing | Large Packing |
|---|---|---|---|
| 6.5mm | 5 ply | 65 sheets | 90 sheets |
| 9mm | 7 ply | 44 sheets | 65 sheets |
| 12mm | 9 ply | 33 sheets | 50 sheets |
| 15mm | 11 ply | 26 sheets | 40 sheets |
| 18mm | 13 ply | 22 sheets | 35 sheets |
| 21mm | 15 ply | 19 sheets | 30 sheets |
| 24mm | 17 ply | 17 sheets | 25 sheets |
| 27mm | 19 ply | 14 sheets | 22 sheets |
| 30mm | 21 ply | 13 sheets | 20 sheets |
| 35mm | 25 ply | 12 sheets | 17 sheets |
| 40mm | 29 ply | 10 sheets | 15 sheets |
Plies
The number of laminations
1.4mm thick, laid-up with grain alternating at 90 degrees
Packing
Quantities shown are standard mill packing
For special order items, pack quantities can be altered
Panel Sizes
Popular sizes, usually held in stock
| Metric | Imperial |
|---|---|
| 2440 x 1220 | 8ft x 4ft |
| 1250 x 2500 | |
| 1220 x 3050 | 4ft x 10ft |
| 1525 x 3050 | 5ft x 10ft |
Sizes available from the mill
(Bespoke cut sizes also available)
| Width (mm) | Lengths (mm) |
|---|---|
| 1220 or 1250 | 2440 / 2500 / 2745 / 3000 / 3050 / 3340 / 3660 / 4000 |
| 1500 or 1525 | 2440 / 2500 / 2745 / 3000 / 3050 / 3340 / 3660 / 4000 |
| 1830 or 1850 | 3050 / 3340 / 3660 / 3850 / 4000 |
| 2150 | 3050 / 3340 / 3850 / 4000 |
| 2290 | 4000 |
| 2440 or 2500 | 1220 / 1250 (long-grain panels) |
Scarf-joined Panels
Larger sizes than shown are possible. Panels would be scarf-jointed.
Stocked Items
Popular sizes, usually held in stock
| Size | Colour | Pattern |
|---|---|---|
| 9mm 2440 x 1220 | Dark Brown | Smooth / Mesh |
| 9mm 1525 x 3050 | Dark Brown | Smooth / Mesh |
| 12mm 1220 x 2440 | Dark Brown | Smooth / Smooth |
| 12mm 1220 x 2440 | Green | Smooth / Smooth |
| 12mm 1220 x 2440 | Light Brown | Smooth / Smooth |
| 12mm 1220 x 2440 | Dark Brown | Smooth / Mesh |
| 12mm 1525 x 3050 | Dark Brown | Smooth / Smooth |
| 15mm 1220 x 2440 | Dark Brown | Smooth / Mesh |
| 18mm 1220 x 2440 | Dark Brown | Smooth / Smooth |
| 18mm 1220 x 2440 | Dark Brown | Smooth / Mesh |
| 18mm 1220 x 2500 | Dark Brown | Smooth / Mesh |
| 18mm 1525 x 3050 | Dark Brown | Smooth / Mesh |
| 21mm 1220 x 2440 | Dark Brown | Smooth / Mesh |
| 21mm 1525 x 3050 | Dark Brown | Smooth / Smooth |
| 24mm 1220 x 2440 | Dark Brown | Smooth / Mesh |
| 27mm 1220 x 2440 | Dark Brown | Smooth / Mesh |
| 30mm 1220 x 2440 | Dark Brown | Smooth / Mesh |
Specifications
Smooth Faced Birch Plywood
Overlay
Paper impregnated with phenol resin
Moisture and chemical resistant.
Available in 120g and 240g/m²
Edge Sealing
Exterior acrylic paint to prevent moisture ingress
To match phenol face colour
Bonding Quality
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Weight
640-700 kg/m³
e.g. 18mm 8x4 weighs approx. 37kg
Moisture Content
10% (+/- 2%) to EN315 and DIN 68705
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Cutting Service
Cut to size & CNC machined panels
We offer a full cutting and processing service
Router, drill, chamfer or machining
Edges are sealed with external paint
For more information on our cutting & machining services
Colours
Phenolic Resin:

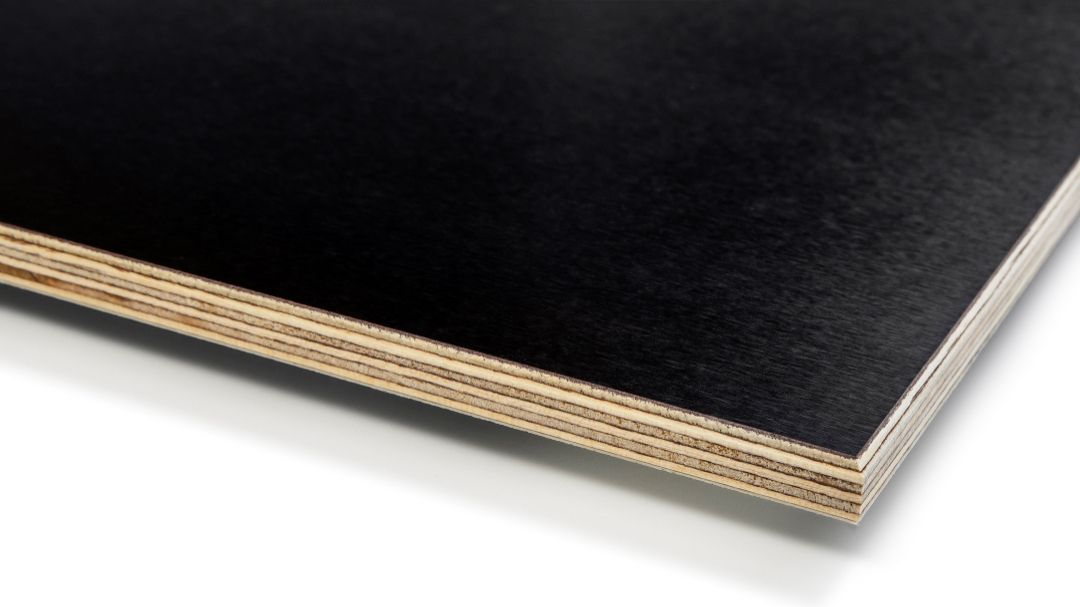

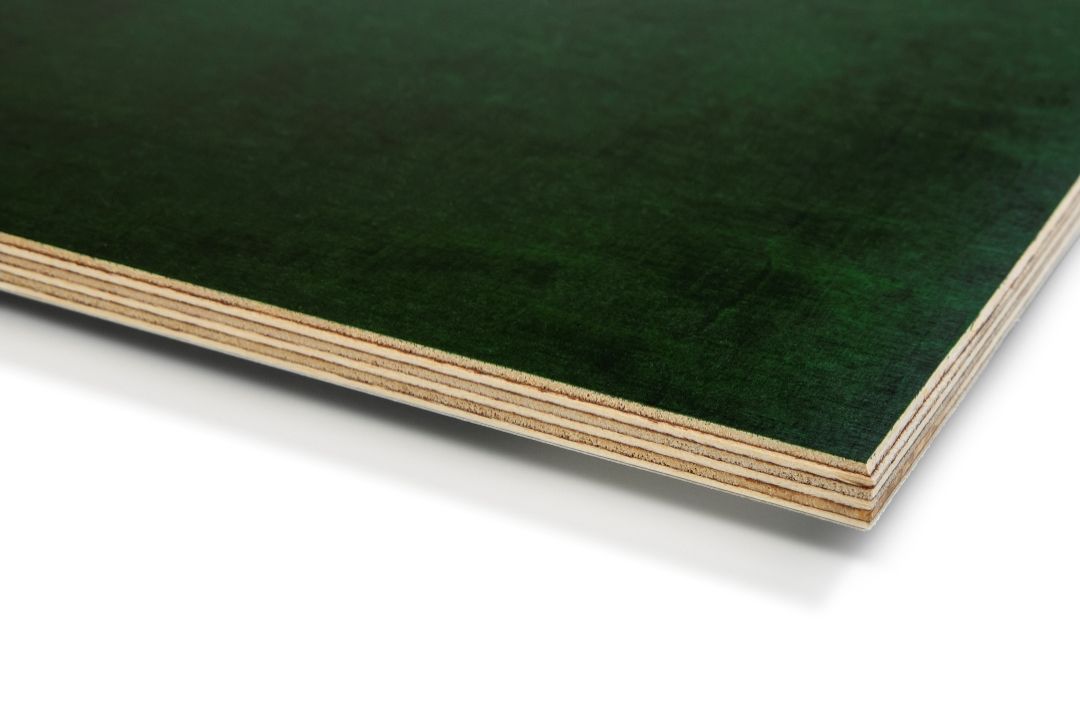

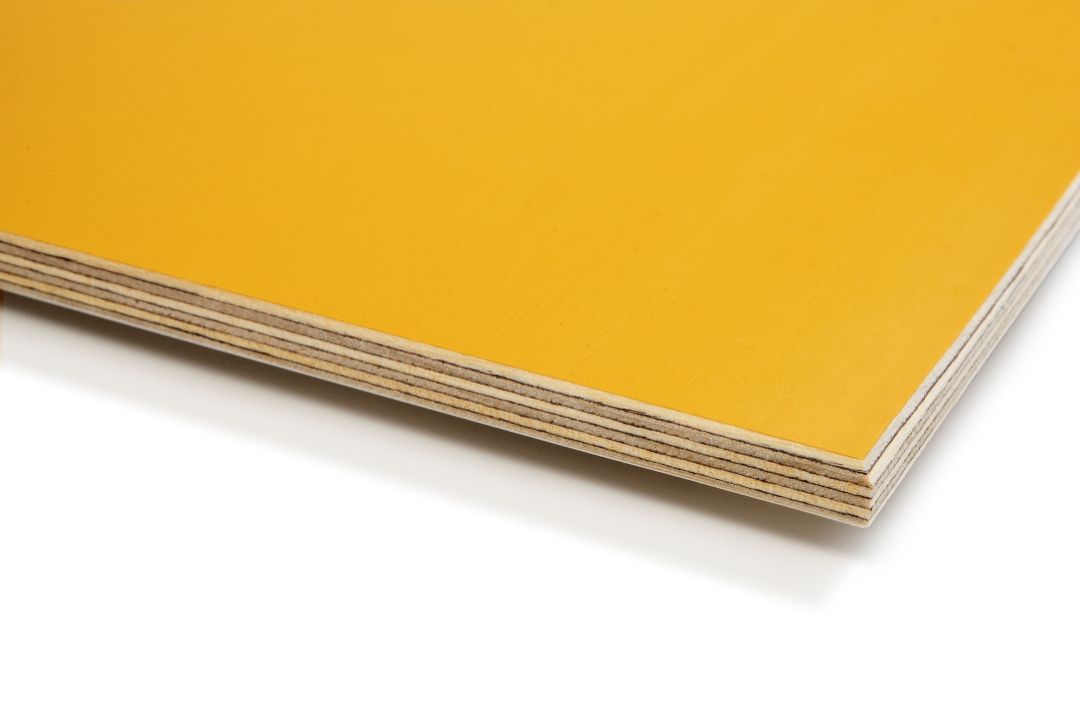

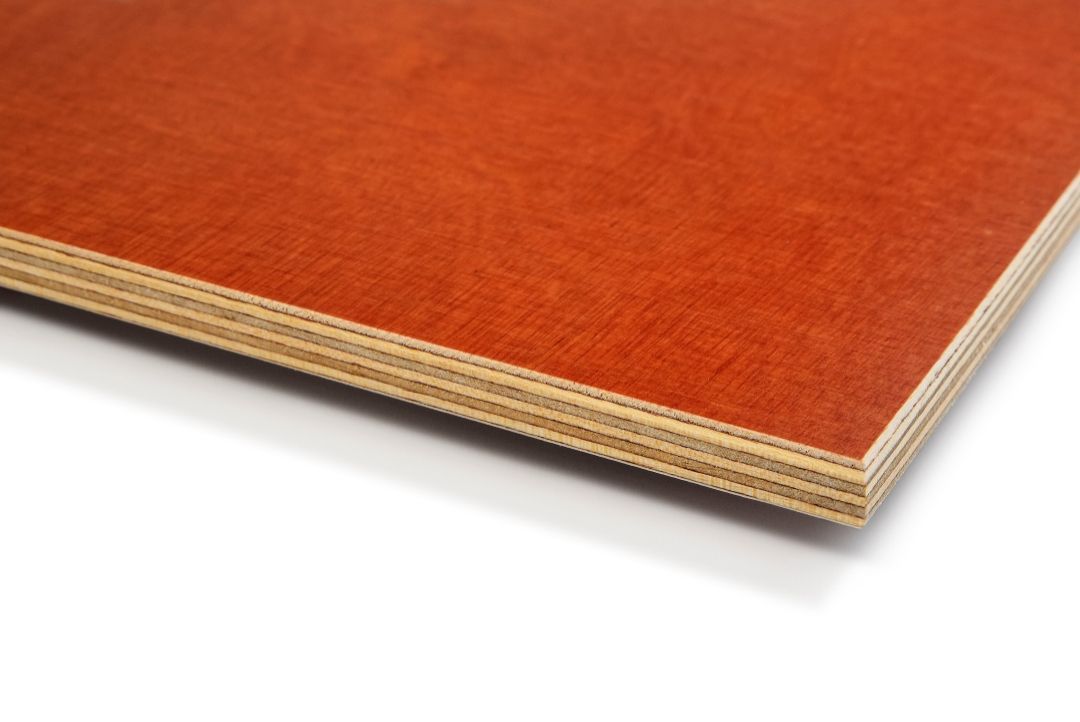

Dark Brown - Light Brown - Black - Green - Yellow
Melamine Resin:

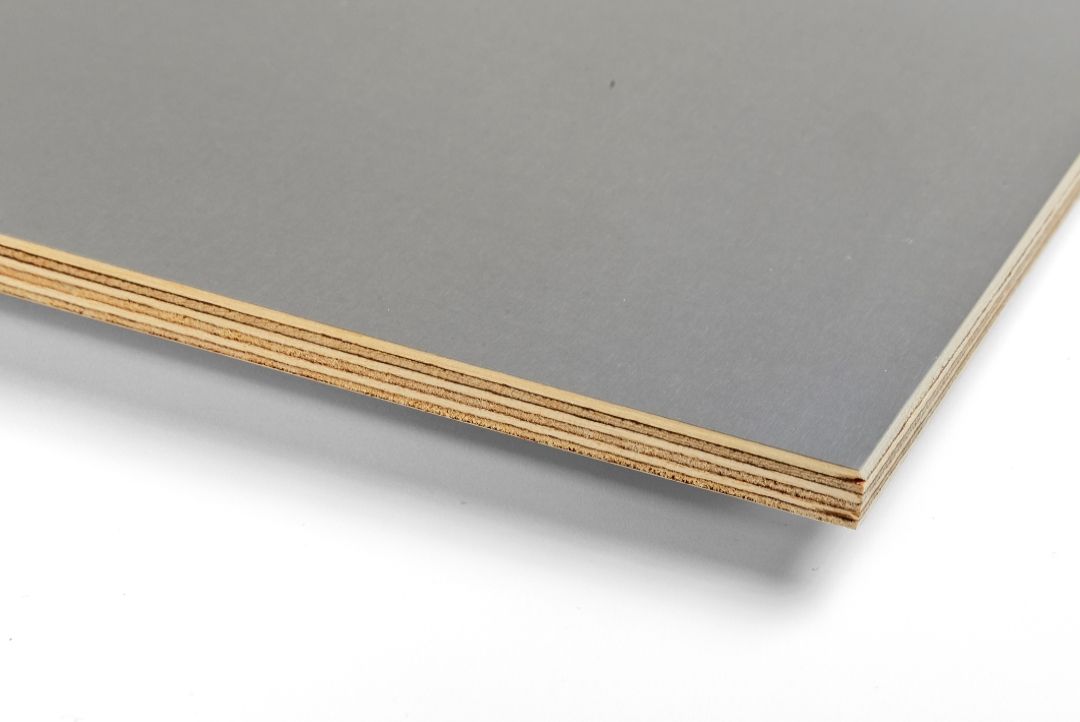

Silver Grey - Light Grey - Honey Brown - Blue
Film weights available from 120g/m² to 440g/m²
Phenol faced plywood is not manufactured or offered as a decorative panel. We only recommend specifying for industrial / light industrial and utility applications.
As this is intended for industrial applications, minor visual defects (rippling, blemishes, overlaps, scratches) are permitted in the grading rules.
Phenol film is not UV fast and the colour will change over time.
