Smooth Mesh Plywood

Phenol Smooth Mesh Faced Birch Plywood

Nationwide delivery of packs and commercial volumes to trade customers

For details and prices:

Smooth Mesh Textured Pattern

Functional and Hardwearing

Cut to size & machining service available

Birch Plywood Core

120g, 220g, 240g or 440g Phenolic Film

Smooth Mesh surface with a Smooth Phenol Reverse

Smooth Mesh Two Sides Available

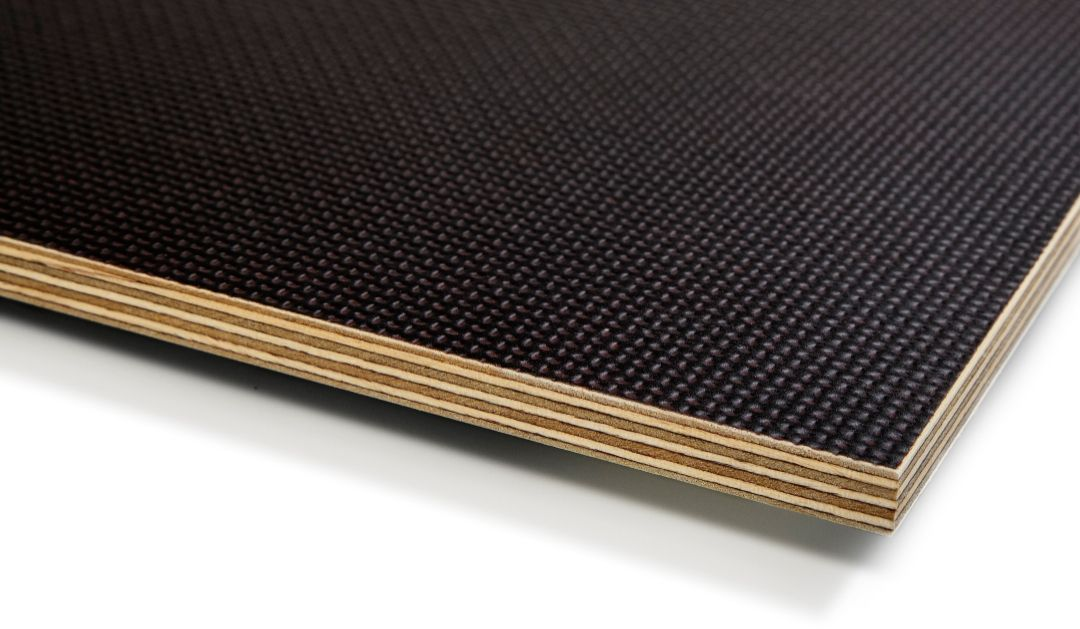

Dark Brown phenol smooth mesh birch plywood

Applications

Vehicle Flooring

Durable hard wearing surface with high wear resistance

For trailer beds / trailer floors

Joinery

Visually attractive for joinery work

Stage Floors

Available in thick panels

Cut to size for metal frameworks

Excellent strength to weight ratio

Case Making

Smooth textured uni-directional pattern

Ideal for flight cases

Thickness & Packing

Thickness No. of Plies Small Packing Large Packing
6.5mm 5 ply 65 sheets 90 sheets
9mm 7 ply 44 sheets 65 sheets
12mm 9 ply 33 sheets 50 sheets
15mm 11 ply 26 sheets 40 sheets
18mm 13 ply 22 sheets 35 sheets
21mm 15 ply 19 sheets 30 sheets
24mm 17 ply 17 sheets 25 sheets
27mm 19 ply 14 sheets 22 sheets
30mm 21 ply 13 sheets 20 sheets
35mm 25 ply 12 sheets 17 sheets
40mm 29 ply 10 sheets 15 sheets

Plies

The number of laminations

1.4mm thick, laid-up with grain alternating at 90 degrees

Packing

Quantities shown are standard mill packing

For special order items, pack quantities can be altered

Panel Sizes

Sizes available from the mill

(Bespoke cut sizes also available)

Width (mm) Lengths (mm)
1220 or 1250 2440 / 2500 / 2745 / 2750 / 3000 / 3050
1500 or 1525 2440 / 2500 / 2745 / 2750 / 3000 / 3050

Availability

Special order


Minimum quantity: full packs per thickness and colour


Contact us for current lead-times

Specifications

Smooth Mesh Faced Birch Plywood

Overlay

Phenolic resin or melamine resin

Moisture and chemical resistant.

Available in 120g to 440g m²

Edge Sealing

Exterior acrylic paint to prevent moisture ingress

To match phenol face colour

Mesh Pattern

Small mesh: 4.5 mesh per 1cm

Large mesh: 2.5 mesh per 1cm

Weight

640-700 kg/m³

e.g. 18mm 8x4 weighs approx. 37kg

Wear Resistance

Taber Test (EN 438-2)

400 revolutions (120g film)

900 revolutions (240g film)

2,500 revolutions (440g film)

Bonding Quality

EN314-3 class 3 exterior conditions

Dark brown glue-line, phenol resin

Moisture Content

10% (+/- 2%) to EN315 and DIN 68705

Formaldehyde

In accordance with the standard EN 13986

the formaldehyde emission meets the Class E1 requirements

(test method EN 717 Part 2)

Cutting Service

Cut to size & CNC machined panels


We offer a full cutting and processing service

Router, drill, chamfer or machining

 Edges are sealed with external paint

For more information on our cutting & machining services

Colours

Phenolic Resin:

Dark Brown - Light Brown - Black - Green - Yellow


Melamine Resin:

Silver Grey - Light Grey - Honey Brown - Blue - Opal White


Film weights available from 120g/m² to 440g/m²



Phenol faced plywood is not manufactured or offered as a decorative panel. We only recommend specifying for industrial / light industrial and utility applications.


As this is intended for industrial applications, minor visual defects (rippling, blemishes, overlaps, scratches) are permitted in the grading rules.


Phenol film is not UV fast and the colour will change over time.

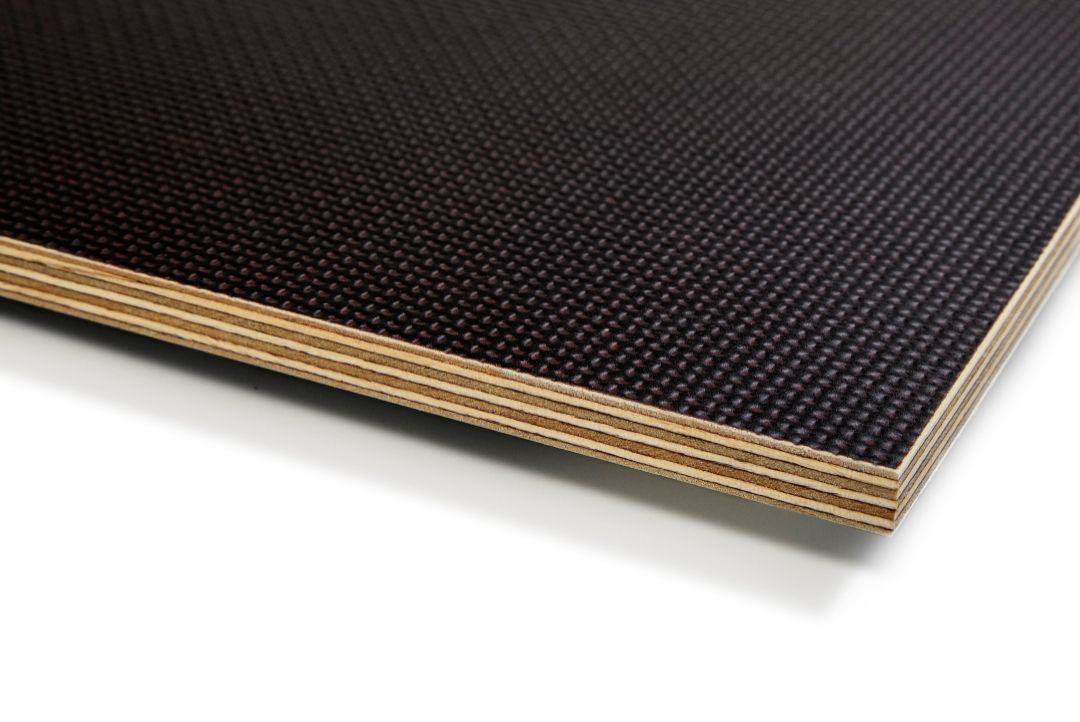

Smooth mesh plywood in dark brown
Smooth mesh plywood in black
Smooth mesh plywood in light brown

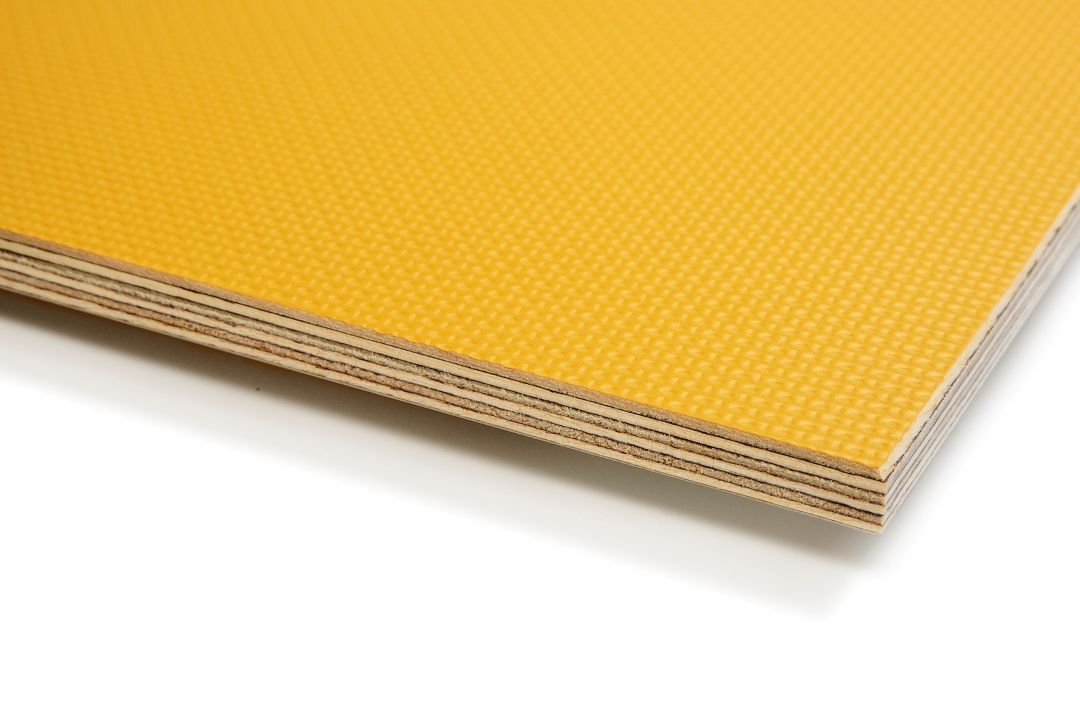

Smooth mesh plywood in yellow

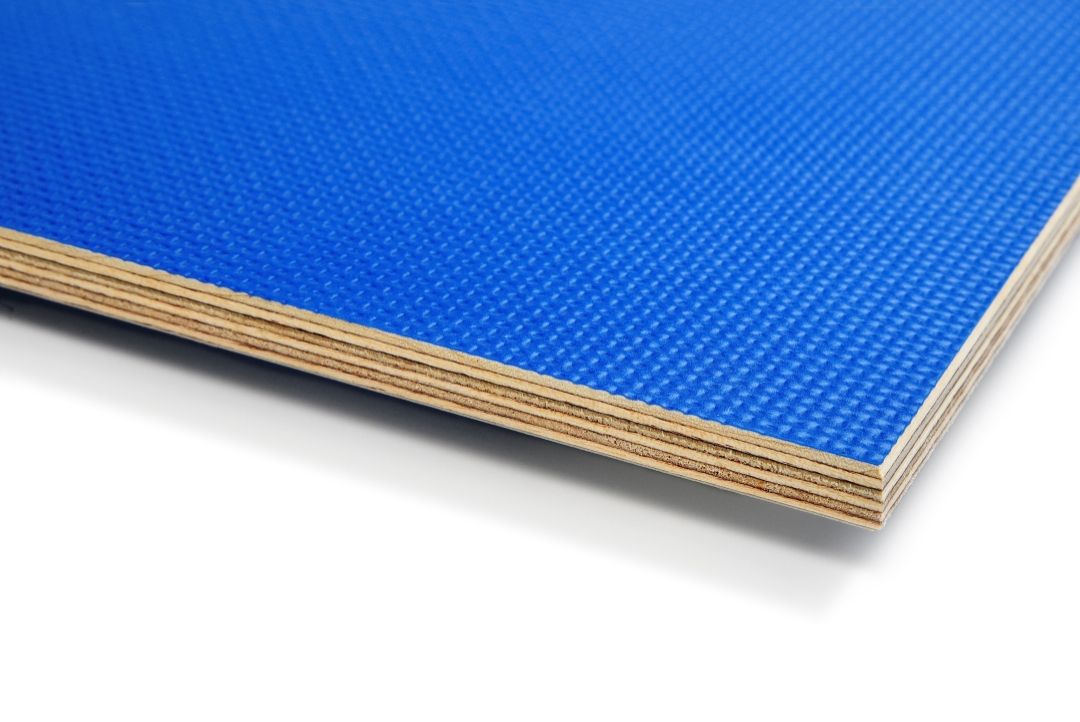

Smooth mesh plywood in blue

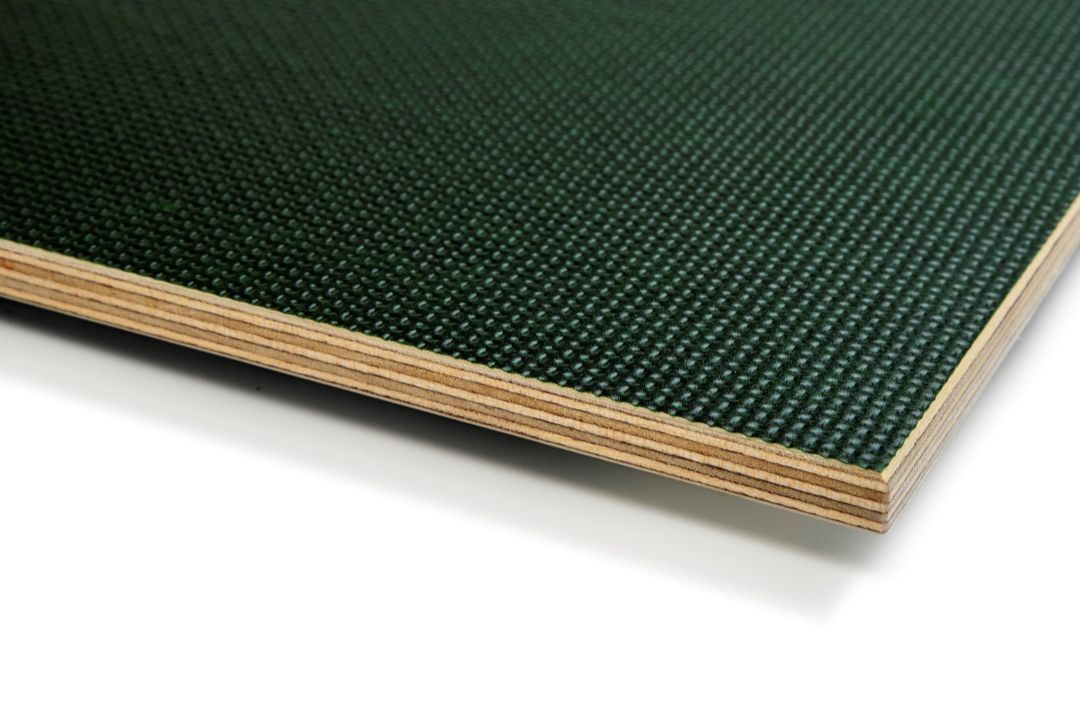

Smooth mesh plywood in green
Smooth mesh plywood in light grey

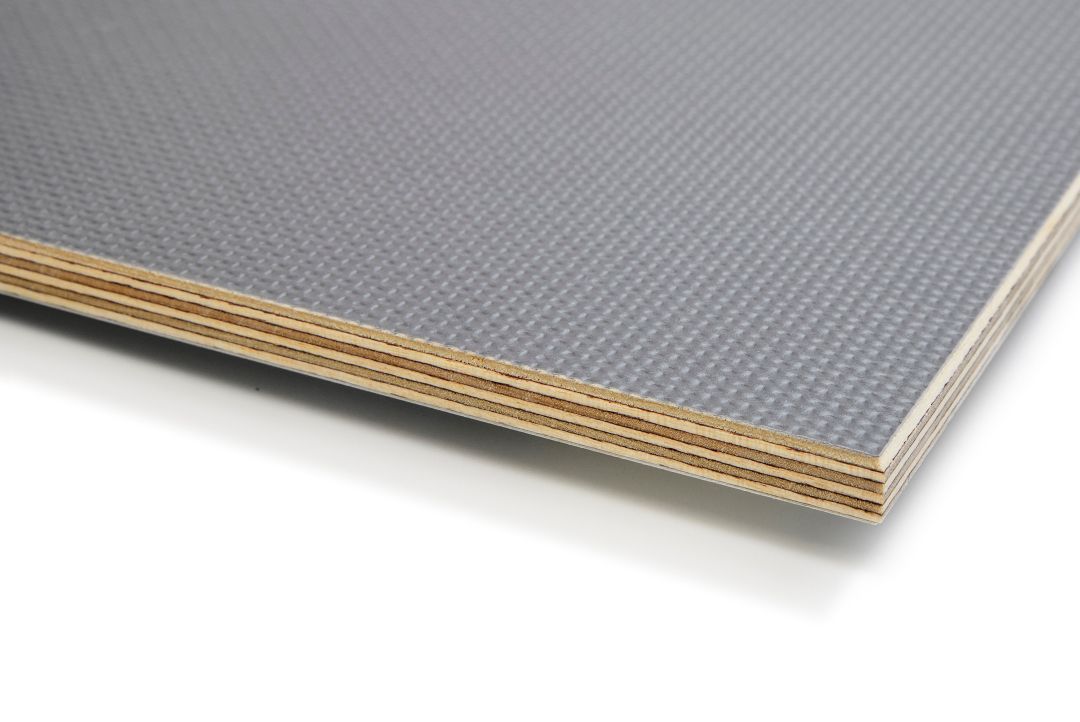

Smooth mesh plywood in silver dark grey
