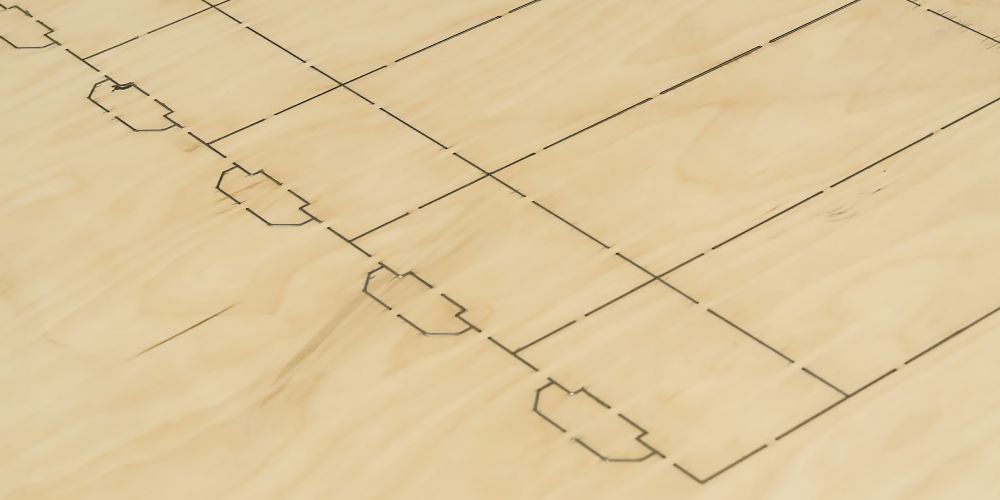

Laser Plywood for Die Cutting
Nationwide delivery of packs and commercial volumes to trade customers
For details and prices:
Birch Plywood with Interior Glue
Die-board plywood
for the packaging industry
Panel Sizes
| Board Size | Thickness |
|---|---|
| 1220 x 1830 | 12mm / 15mm / 18mm |
| 1220 x 2440 | 12mm / 15mm / 18mm |
| 1500 x 2200 | 12mm / 15mm / 18mm |
| 1525 x 1220 | 12mm / 15mm / 18mm |
| 1525 x 1525 | 12mm / 15mm / 18mm |
| 1525 x 1830 | 12mm / 15mm / 18mm |
| 1525 x 2200 | 12mm / 15mm / 18mm |
| 1525 x 2440 | 12mm / 15mm / 18mm |
Other press sizes and thickness available on request
Cut to size service available
Face Grade
BB/BB Grade Birch Plywood
- maximum 6 repair patches (plugs) per m²
- filled unsound knots & holes up to 10mm (3 per m²)
- filled splits up to 1/5th panel length, 5mm wide (3 per m²)
- slight discolouration permitted
- knots permitted, up to 35mm
Clear Coating
We can offer a clear melamine or UV lacquered faces for more hygienic and easy clean panels
Ideal for food packaging production or any other demanding requirement
Specifications
Laser Birch Plywood
Thickness
12mm / 15mm / 18mm are the standard thickness
Other thickness available on request
Face Grade
BB/BB grade rotary cut birch
Bonding Quality
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Weight
640-700 kg/m³
e.g. 18mm 8x4 weighs approx. 37kg
Core Construction
Manufactured as standard birch plywood
multi-laminated construction
Internal veneers: 1.4mm birch
Face veneers: 0.55mm (approx) birch
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
