Riga Trans Plywood

Birch Plywood Panels

Enhanced anti-slip pattern

High demand flooring applications

Nationwide delivery of packs and commercial volumes to trade customers

For details and prices:

Durable, heavy-duty and hardwearing

Extremely abrasive surface

Sustainable face with long life span

Birch Plywood Core

Riga Trans has a 350g Phenolic Film

Riga Trans Heavy has a 440g Phenol Film

Hot pressed using special plates

Smooth Phenol reverse

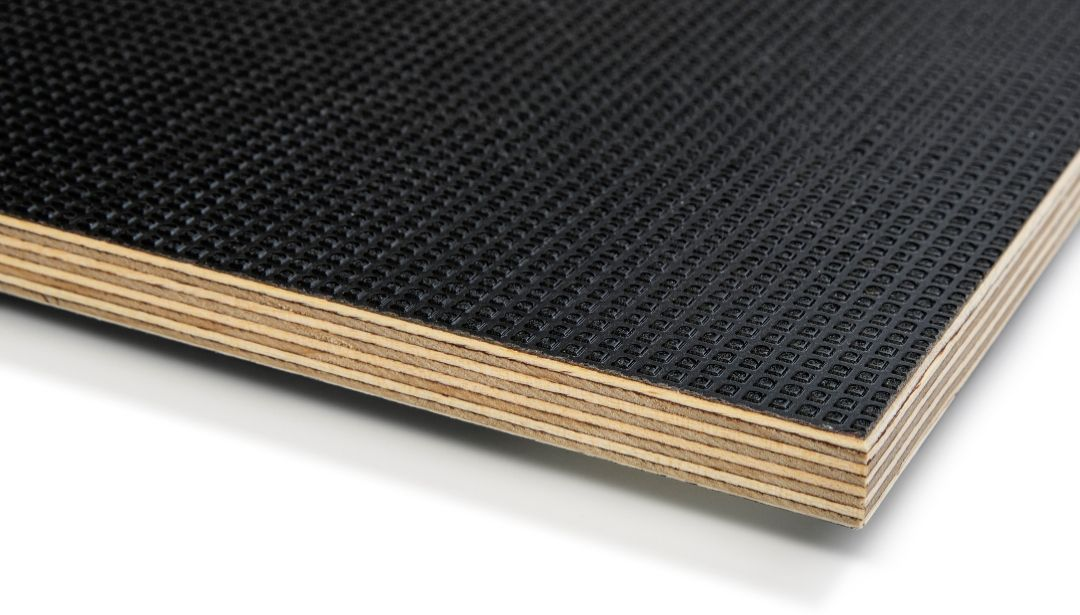

Riga Trans birch plywood

Applications

Vehicle Flooring

Durable hard wearing surface with high wear resistance

For trailer beds / trailer floors

Transport

Sea Transport: cargo shipping / container floors

Rail Transport: cargo wagons

Flooring

Industrial flooring and stage floors

Available in extra thick panels

Excellent strength to weight ratio

Platforms

Loading platforms, scaffolding, pier surfaces

Where high wear resistance and good anti-slip properties are important

Thickness & Packing

Thickness No. of Plies Small Packing Large Packing
6.5mm 5 ply 65 sheets 90 sheets
9mm 7 ply 44 sheets 65 sheets
12mm 9 ply 33 sheets 50 sheets
15mm 11 ply 26 sheets 40 sheets
18mm 13 ply 22 sheets 35 sheets
21mm 15 ply 19 sheets 30 sheets
24mm 17 ply 17 sheets 25 sheets
27mm 19 ply 14 sheets 22 sheets
30mm 21 ply 13 sheets 20 sheets
35mm 25 ply 12 sheets 17 sheets
40mm 29 ply 10 sheets 15 sheets

Plies

The number of laminations

1.4mm thick, laid-up with grain alternating at 90 degrees

Packing

Quantities shown are standard mill packing

For special order items, pack quantities can be altered

Panel Sizes

Sizes available from the mill

(Bespoke cut sizes also available)

Width (mm) Lengths (mm)
1220 or 1250 2440 / 2500 / 2745 / 2750 / 3000 / 3050
1500 or 1525 2440 / 2500 / 2745 / 2750 / 3000 / 3050
2150 3850

Availability

Special order

Minimum quantity: full packs per thickness

Contact us for current lead-times

Specifications

Riga Trans Birch Plywood

Overlay

Phenolic resin. Moisture and chemical resistant.

Does not crack

350gm² Riga Trans

440gm² Riga Trans Heavy

Edge Sealing

Exterior acrylic paint to prevent moisture ingress

To match phenol face colour

Slip Rating

Excellent surface friction increases anti-slip resistance

Exceeds the highest R13 class - according to DIN 51130

Weight

640-700 kg/m³

e.g. 18mm 8x4 weighs approx. 37kg

Wear Resistance

Taber Test (EN 438-2)

1,500 revolutions (Riga Trans)

5,000 revolutions (Riga Trans Heavy)

Rolling Test (EN1818) up to 6,000 cycles

Bonding Quality

EN314-3 class 3 exterior conditions

Dark brown glue-line, phenol resin

Moisture Content

10% (+/- 2%) to EN315 and DIN 68705

Formaldehyde

In accordance with the standard EN 13986

the formaldehyde emission meets the Class E1 requirements

(test method EN 717 Part 2)

Colours

Only available in dark brown

Riga Trans Heavy plywood 8x4

Cutting Service

Cut to size & CNC machined panels


We offer a full cutting and processing service

Router, drill, chamfer or machining

 Edges are sealed with external paint

For more information on our cutting & machining services

Other Coated Panels

Our range of overlaid birch plywood panels

Phenol Mesh

Phenol Smooth

Concrete Formwork

Sports Rebound

Hexa Plus

Hexa

HPL

Riga Frost

Riga Dot

Diamond

Timber
