Mesh Plywood

Phenol Mesh Faced Birch Plywood

Anti-Slip Plywood Panels

Nationwide delivery of packs and commercial volumes to trade customers

For details and prices:

Access Towers and Scaffold Platforms

Cut to size & machining service available

Mesh Plywood for scaffold towers

Birch Plywood Core

120g, 220g or 240g Phenolic Film

Mesh, Wire, Trans or Tex Pattern with a Smooth Phenol Reverse

Mesh Two Sides Available

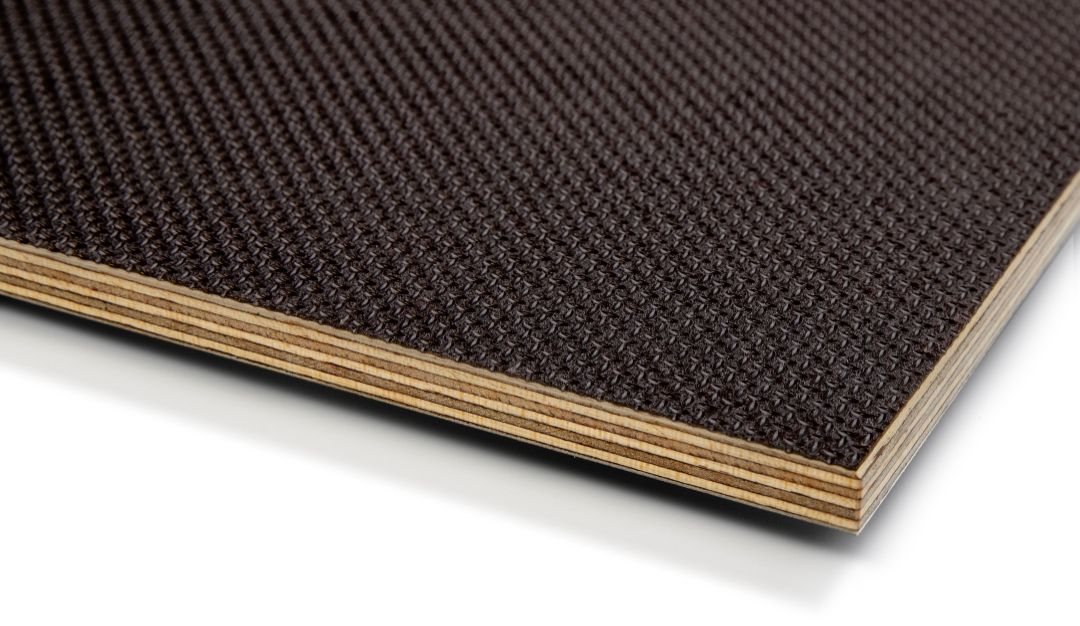

Dark Brown phenol mesh birch plywood

Applications

Vehicle Flooring

Wisa Wire or Riga Tex anti-slip plywood

For trailer beds / trailer floors

Farming / Livestock

Poultry House / Pullet House

Sheep Pens / Pig Pens / Kennels

Access Tower Platforms

Access panels and toe boards

Cut to size and edge sealed

Event Infrastructure

Walkways, Staging, Platforms

Thickness & Packing

Thickness No. of Plies Small Packing Large Packing
6.5mm 5 ply 65 sheets 90 sheets
9mm 7 ply 44 sheets 65 sheets
12mm 9 ply 33 sheets 50 sheets
15mm 11 ply 26 sheets 40 sheets
18mm 13 ply 22 sheets 35 sheets
21mm 15 ply 19 sheets 30 sheets
24mm 17 ply 17 sheets 25 sheets
27mm 19 ply 14 sheets 22 sheets
30mm 21 ply 13 sheets 20 sheets
35mm 25 ply 12 sheets 17 sheets
40mm 29 ply 10 sheets 15 sheets

Plies

The number of laminations

1.4mm thick, laid-up with grain alternating at 90 degrees

Packing

Quantities shown are standard mill packing

For special order items, pack quantities can be altered

Panel Sizes

Popular sizes, usually held in stock

Metric Imperial
2440 x 1220 8ft x 4ft
1250 x 2500
1220 x 3050 4ft x 10ft
1525 x 3050 5ft x 10ft

Sizes available from the mill

(Bespoke cut sizes also available)

Width (mm) Lengths (mm)
1220 or 1250 2440 / 2500 / 2745 / 3000 / 3050 / 3340 / 3660 / 4000
1500 or 1525 2440 / 2500 / 2745 / 3000 / 3050 / 3340 / 3660 / 4000
1830 or 1850 3050 / 3340 / 3660 / 3850 / 4000
2150 3050 / 3340 / 3850 / 4000
2290 4000
2440 or 2500 1220 / 1250 (long-grain panels)

Scarf-joined Panels

Larger sizes than shown are possible. Panels would be scarf-jointed.

Stocked Items

Popular sizes, usually held in stock

Size Colour
9mm 2440 x 1220 Dark Brown
9mm 1525 x 3050 Dark Brown
12mm 1220 x 2440 Dark Brown
15mm 1220 x 2440 Dark Brown
18mm 1220 x 2440 Dark Brown
18mm 1220 x 2500 Dark Brown
18mm 1220 x 3050 Dark Brown
18mm 1525 x 3050 Dark Brown
21mm 1220 x 2440 Dark Brown
24mm 1220 x 2440 Dark Brown
27mm 1220 x 2440 Dark Brown
30mm 1220 x 2440 Dark Brown

Specifications

Mesh Faced Birch Plywood

Phenol Overlay

Paper impregnated with phenol resin

Moisture and chemical resistant.

Available in 120g, 220g and 240g

Edge Sealing

Exterior acrylic paint to prevent moisture ingress

To match phenol face colour

Slip Rating

Conforms to anti-slip rating R13

According to DIN 51130

Weight

640-700 kg/m³

e.g. 18mm 8x4 weighs approx. 37kg

Wear Resistance

Rolling Test (EN 1818) up to 9,000 cycles, 300kg load

Taber Test (EN 438-2)

400 revolutions (120g film)

900 revolutions (240g film)

2,500 revolutions (440g film)

Bonding Quality

EN314-3 class 3 exterior conditions

Dark brown glue-line, phenol resin

Moisture Content

10% (+/- 2%) to EN315 and DIN 68705

Formaldehyde

In accordance with the standard EN 13986

the formaldehyde emission meets the Class E1 requirements

(test method EN 717 Part 2)

Cutting Service

Cut to size & CNC machined panels


We offer a full cutting and processing service

Router, drill, chamfer or machining

 Edges are sealed with external paint


From stock with UK-wide delivery

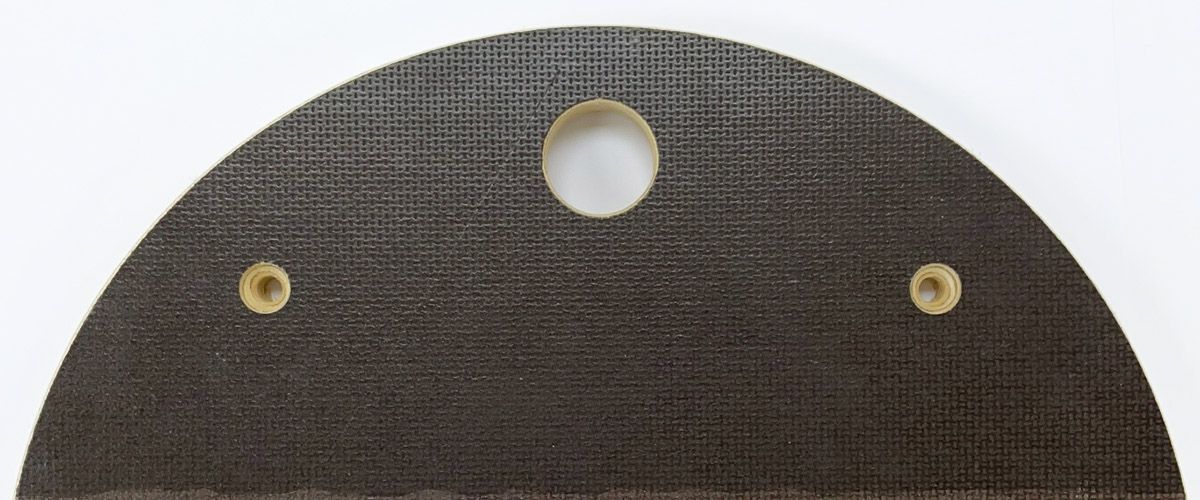

cut to size mesh plywood

For more information on our cutting & machining services

Colours

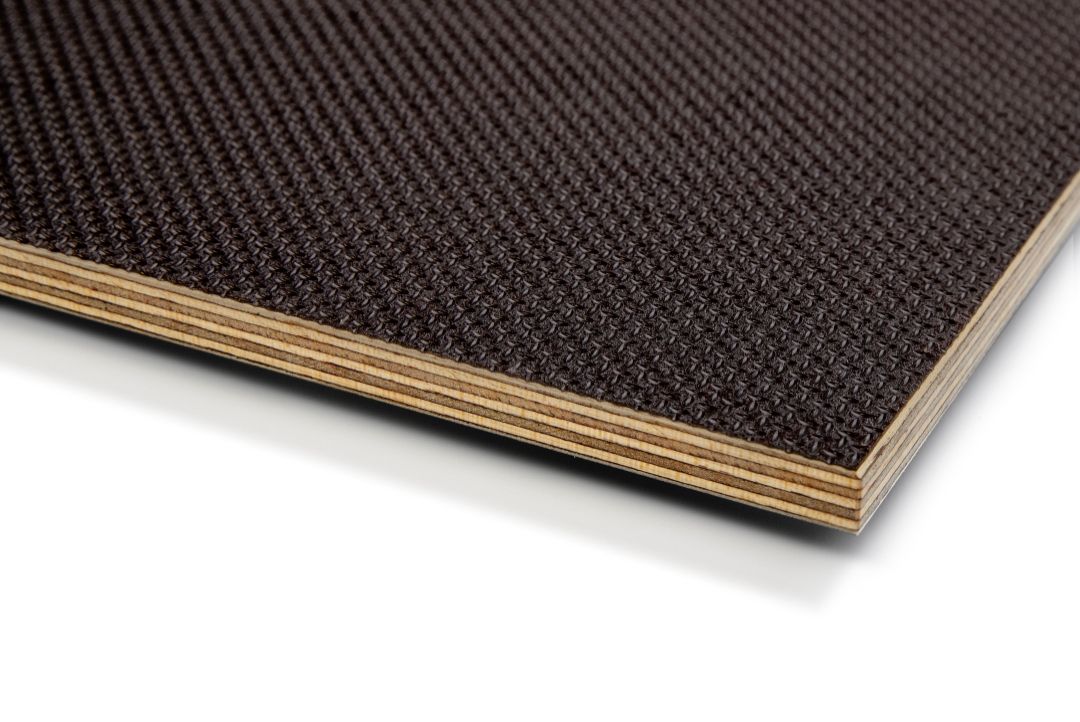

Dark brown is the standard colour

Other colours are available on forward order only


Phenolic Resin:

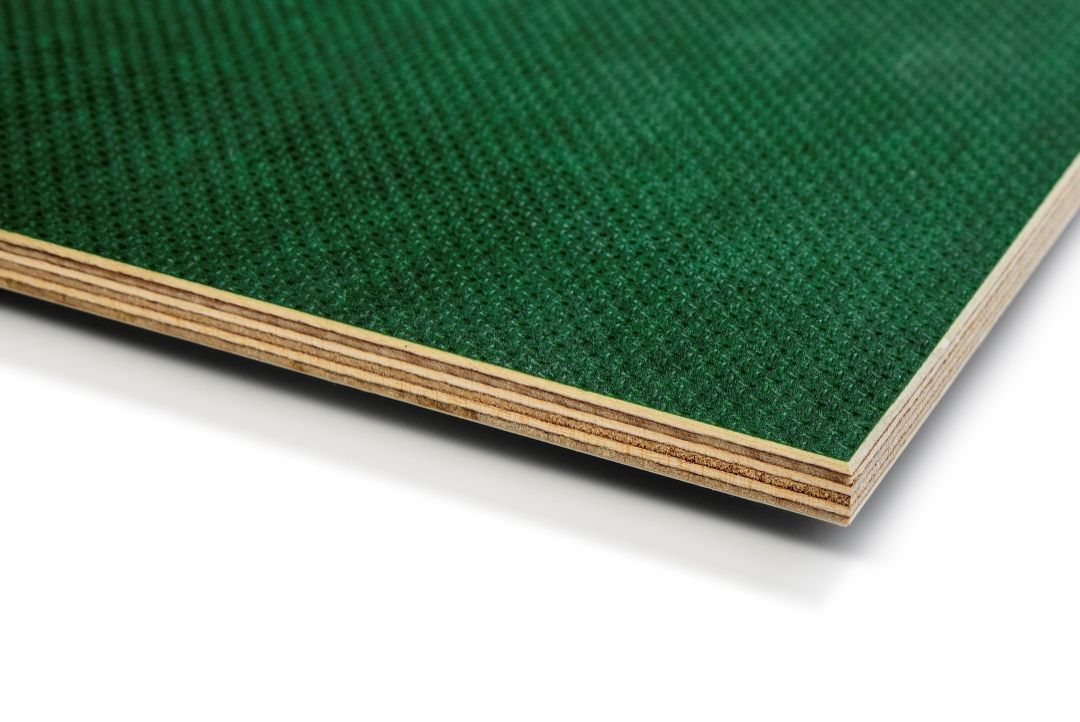

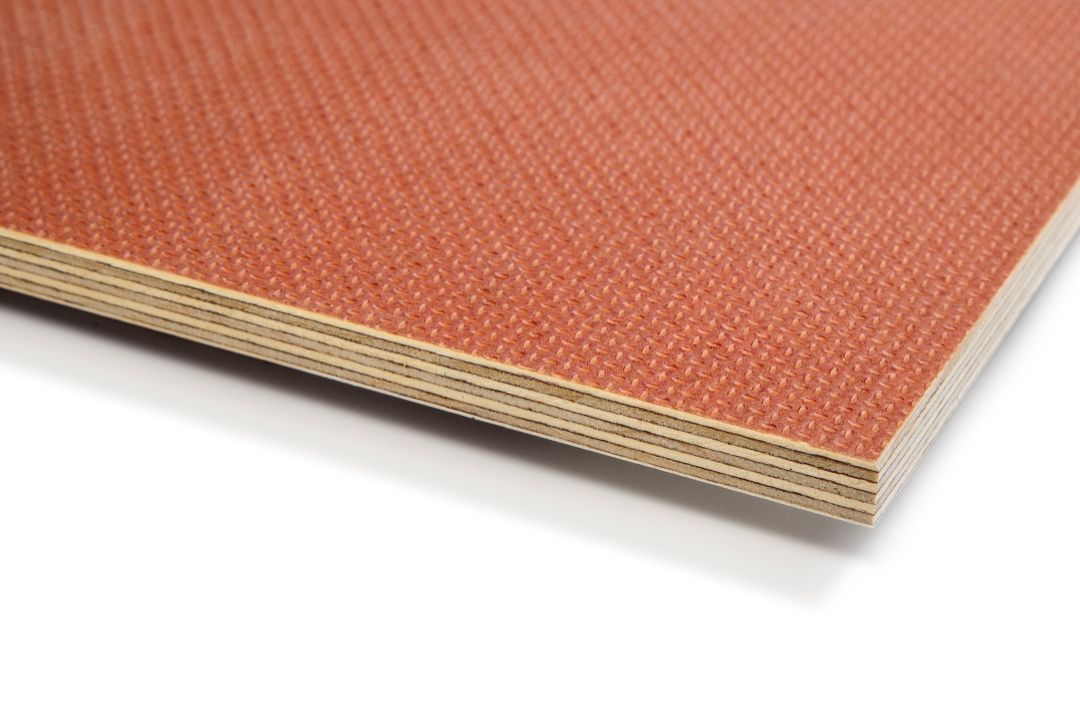

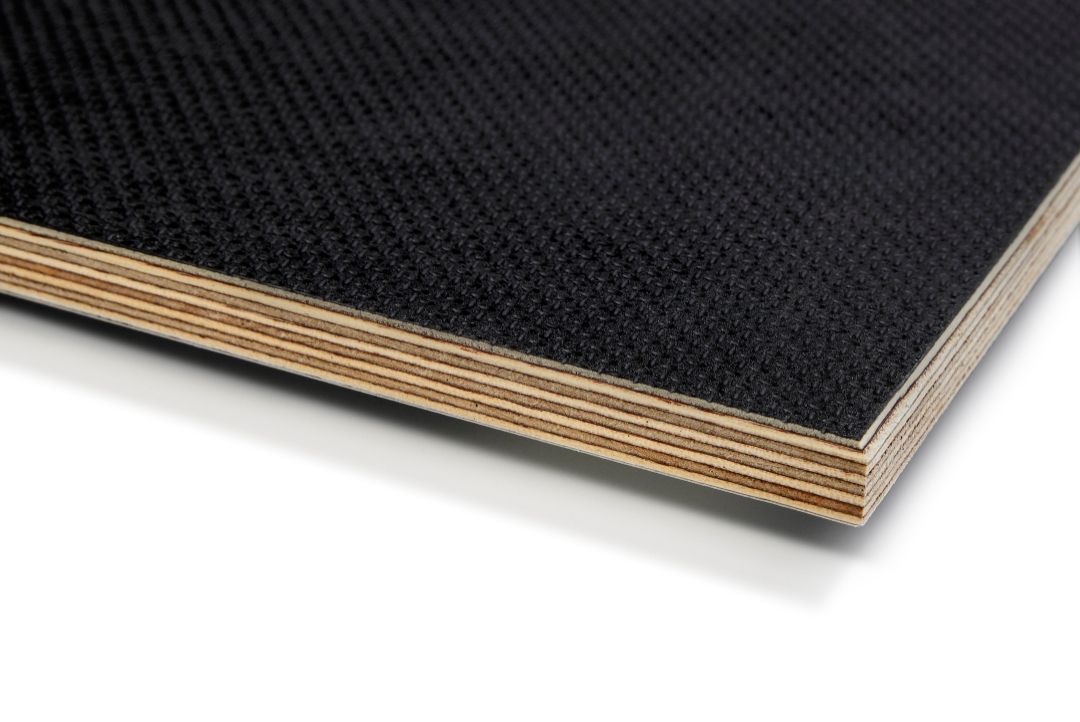

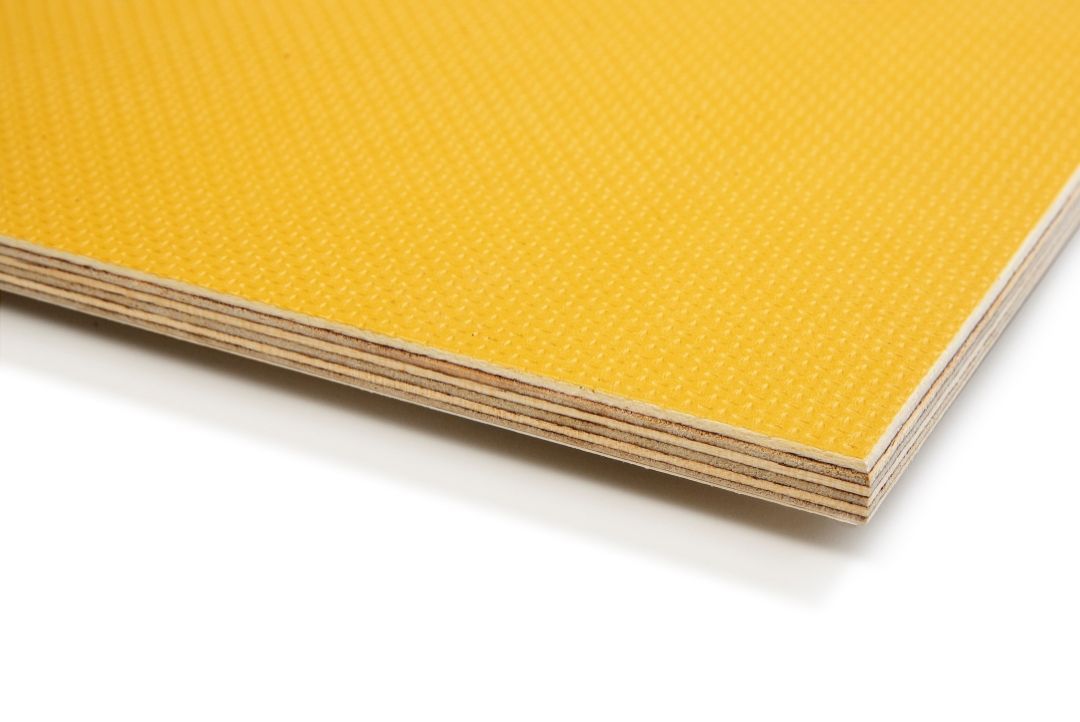

Light Brown - Black - Green - Yellow


Melamine Resin:

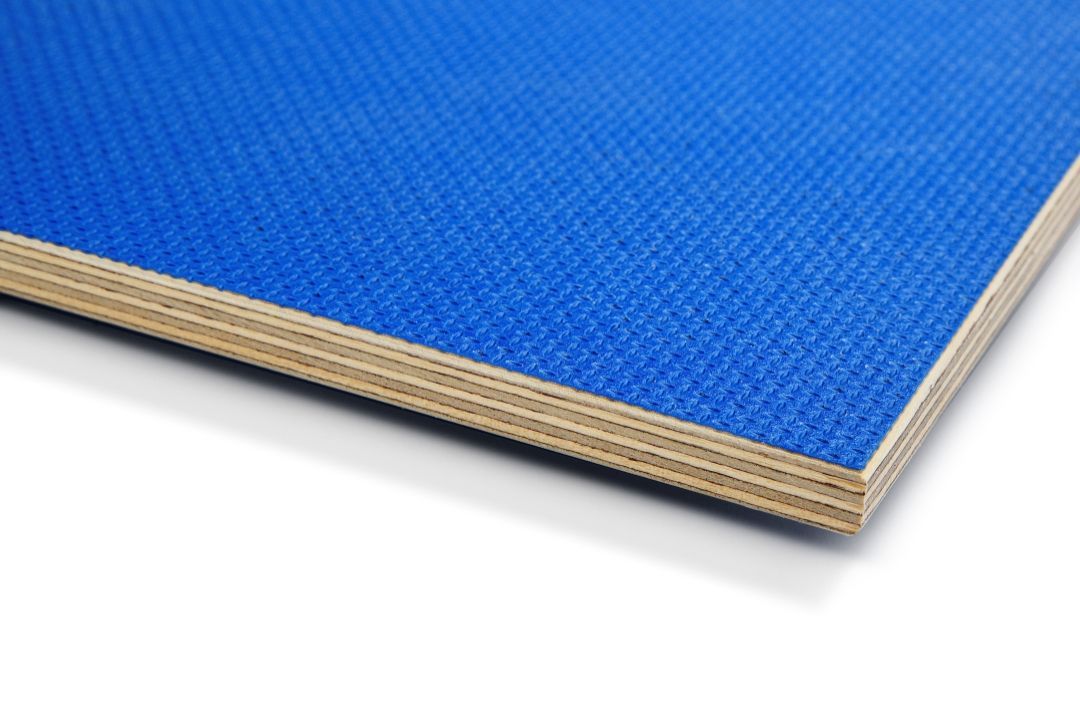

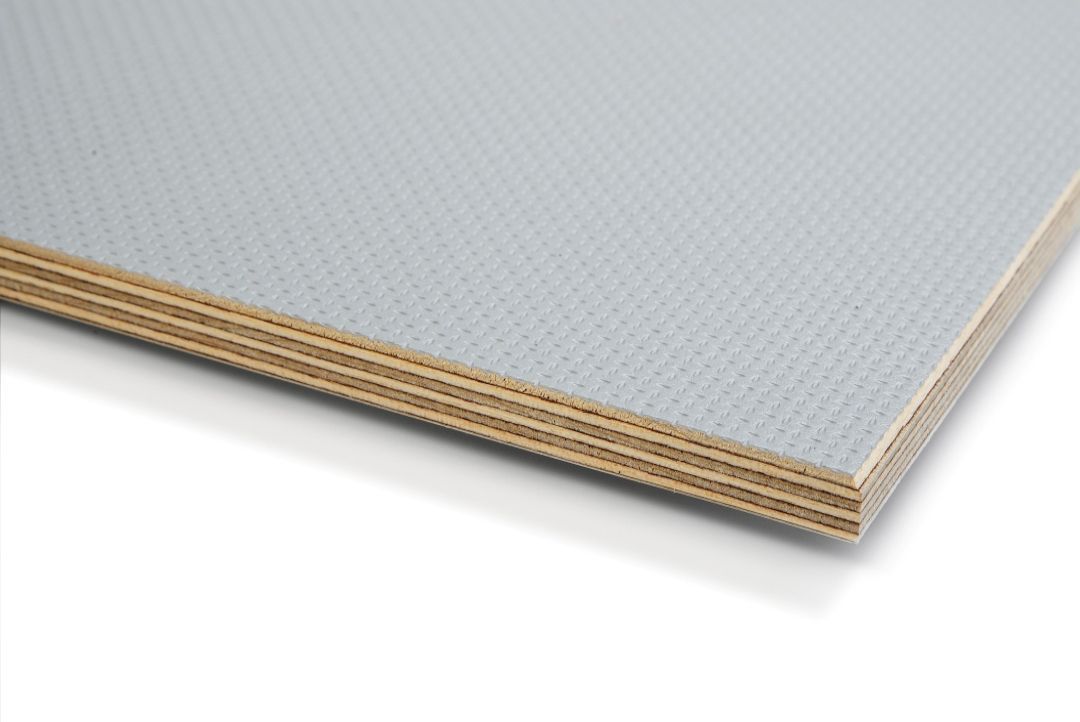

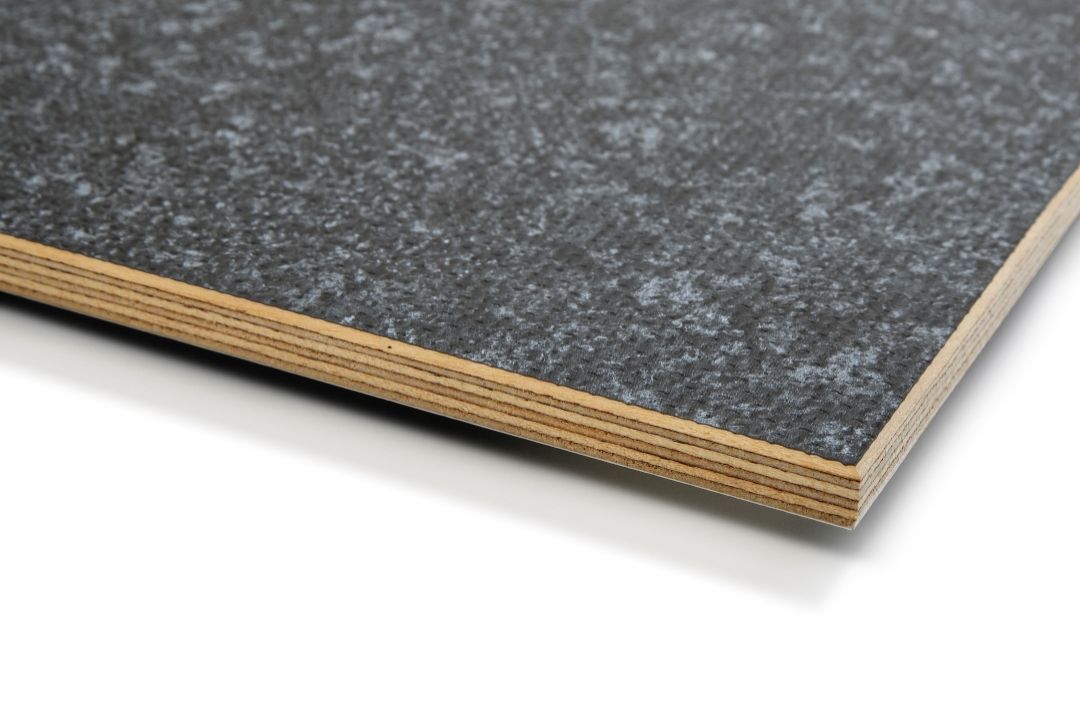

Silver Grey - Light Grey - Honey Brown - Blue - Opal White - Multi Grey



Phenol mesh or smooth faced plywood is not manufactured or offered as a decorative panel. We only recommend specifying for industrial / light industrial and utility applications.


As this is intended for industrial applications, minor visual defects (rippling, blemishes, overlaps, scratches) are permitted in the grading rules.


Phenol film is not UV fast and the colour will deteriorate over time.

Variations

Alternative non-slip phenol faced birch plywood
