Hexa Plywood

Phenol Faced Birch Plywood

Embossed Hexagon Pattern

Smooth Phenol Reverse

Hex Board - HexaDeck - Hexa ply - Heksa Plus

Nationwide delivery of packs and commercial volumes to trade customers

For details and prices:

Hexa

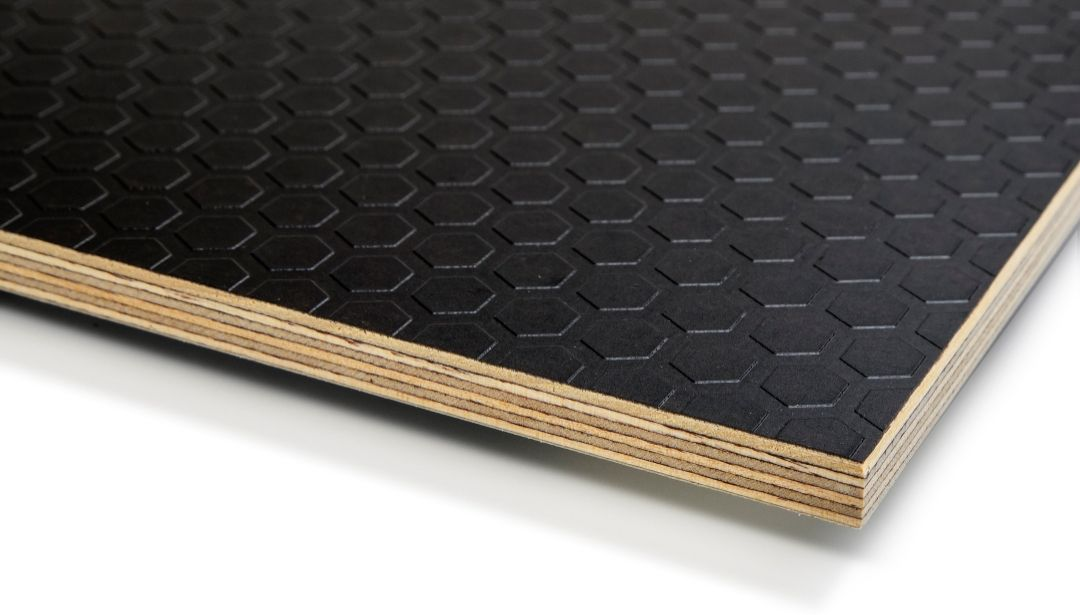

Heksa Birch Plywood Panels

Hexa Plus

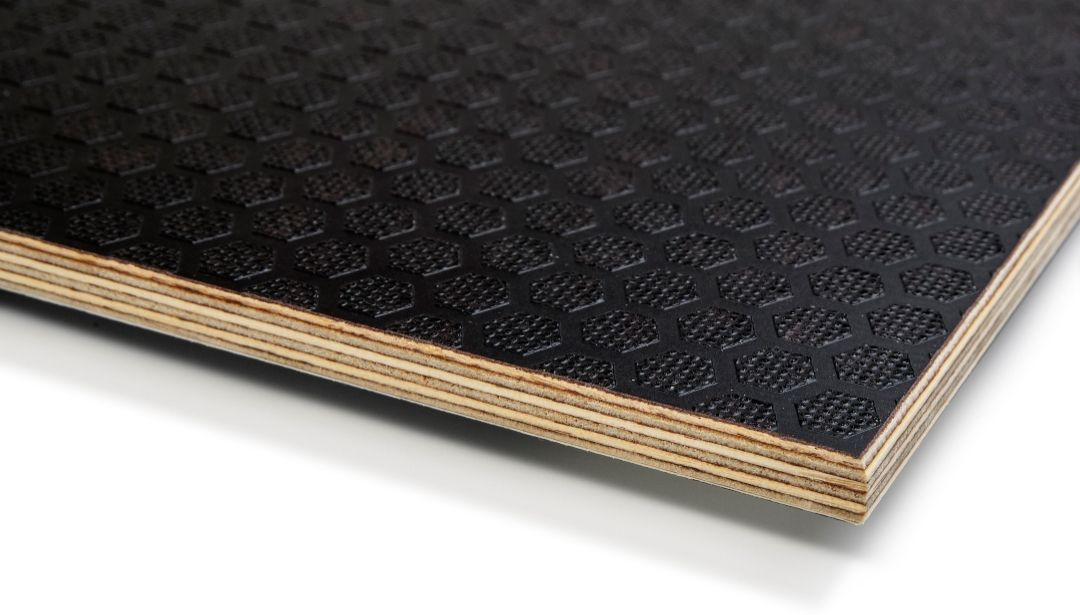

Heksa Plus Birch Plywood

We recommend specifying for commercial and light industrial applications.

Minor visual defects (rippling, blemishes, overlaps) are permitted in the grading rules.


Standard phenol film is not UV fast.

If left outside or in direct sunlight, the colour will deteriorate over time.

Hexa Plus Plywood

Hexa Plus Birch Plywood

Birch Plywood Core

120g, 220g or 240g Phenolic Film with Hexagon Pattern

Hexa "Plus" has higher anti-slip properties compared to Hexa

Colours

Black and dark brown is usually in stock

Other colours on forward order only, in full pack volumes

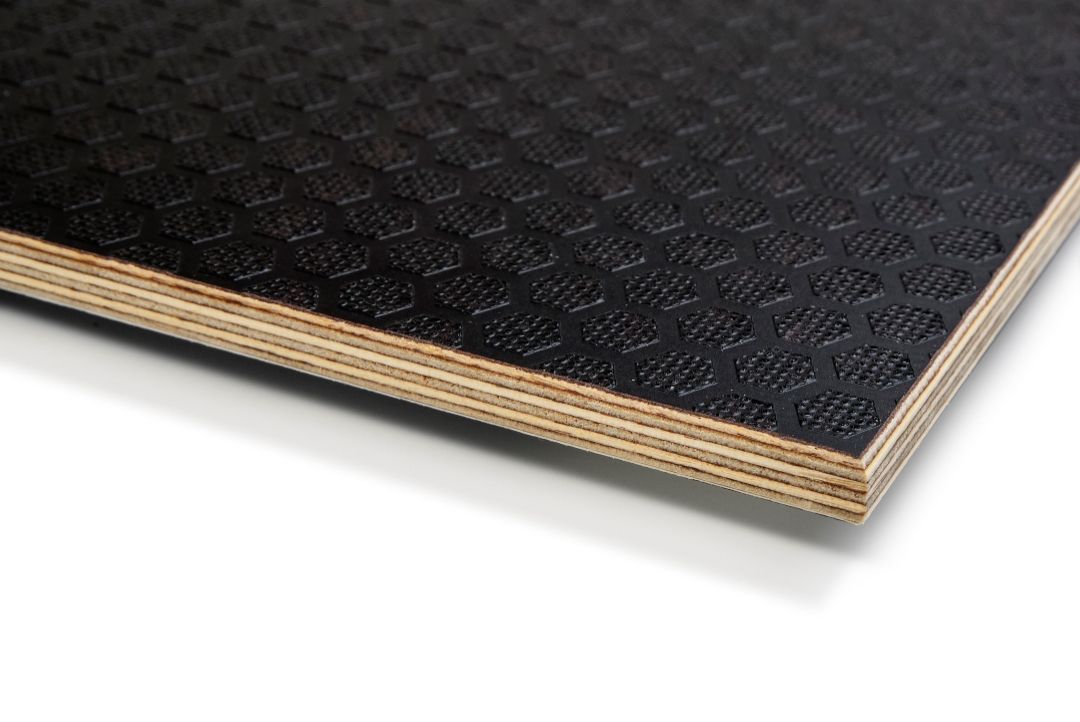

Dark Brown Hexa plus plywood

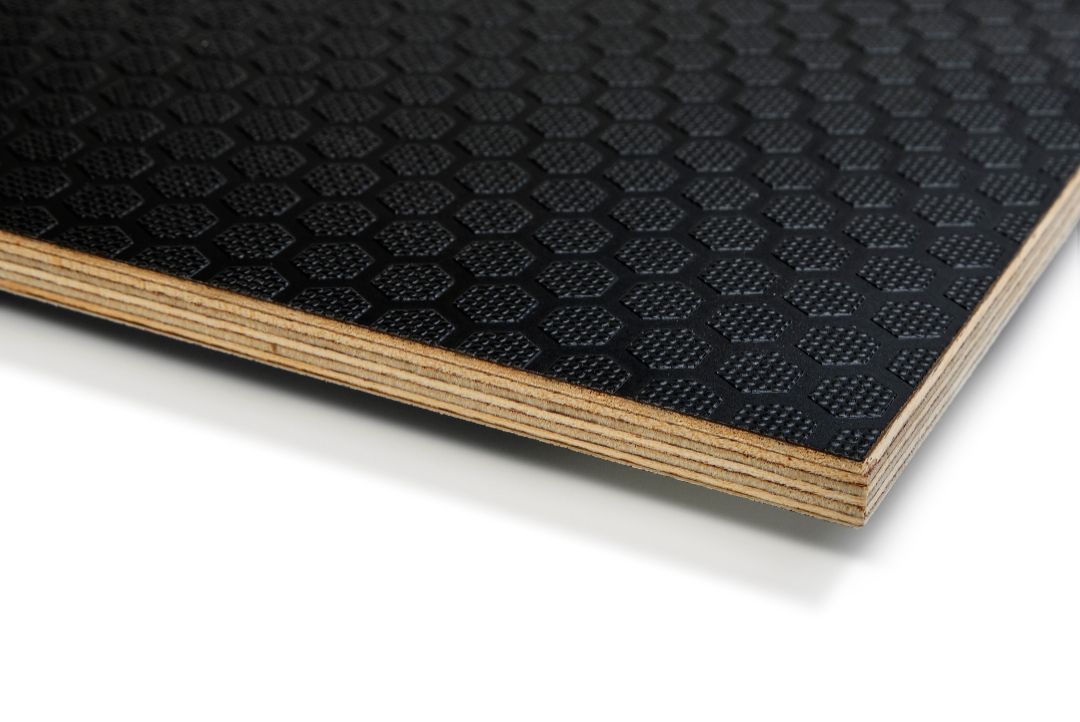

black Hexa plus plywood

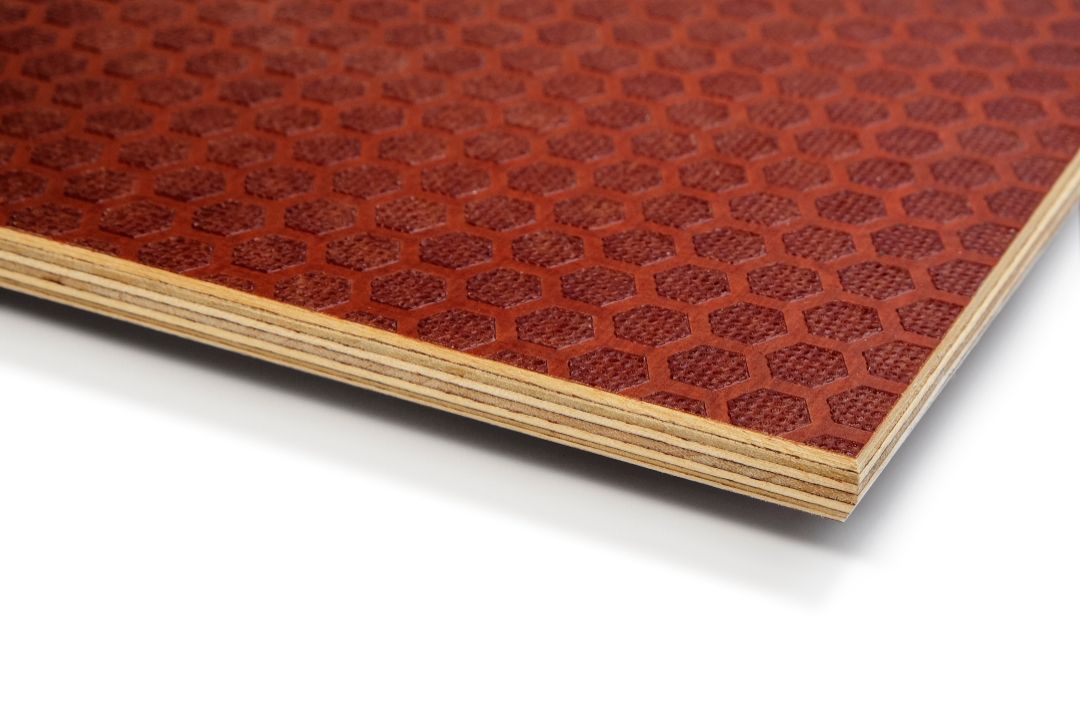

light brown Hexa plus plywood
green Hexa plus plywood

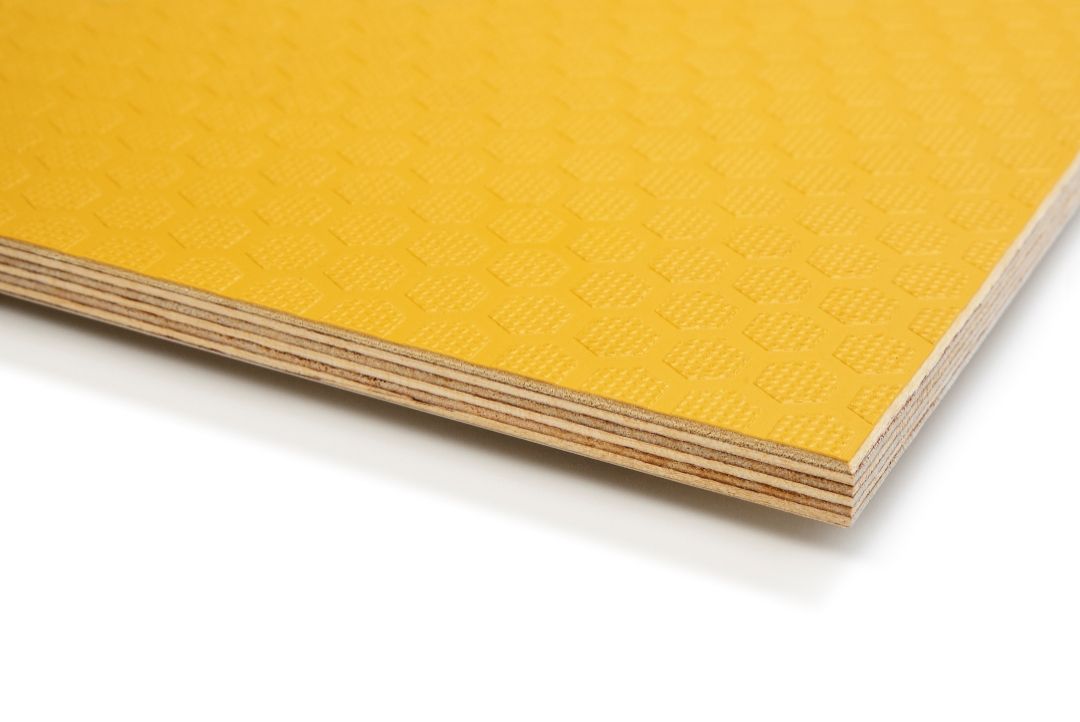

yellow Hexa plus plywood
blue Hexa plus plywood

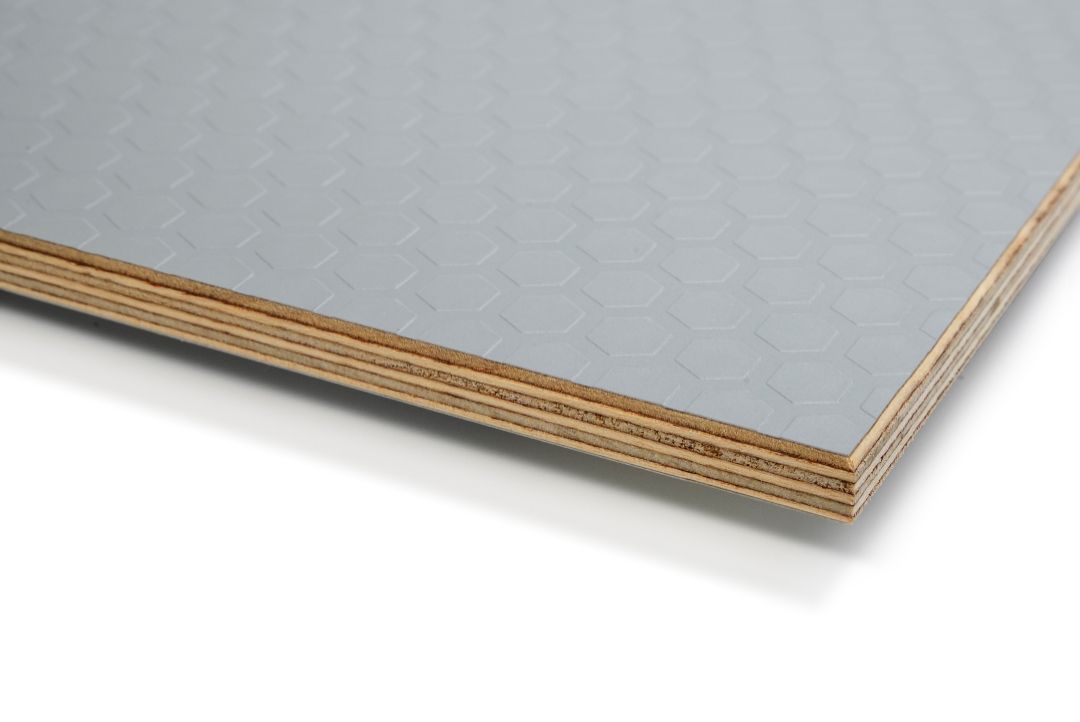

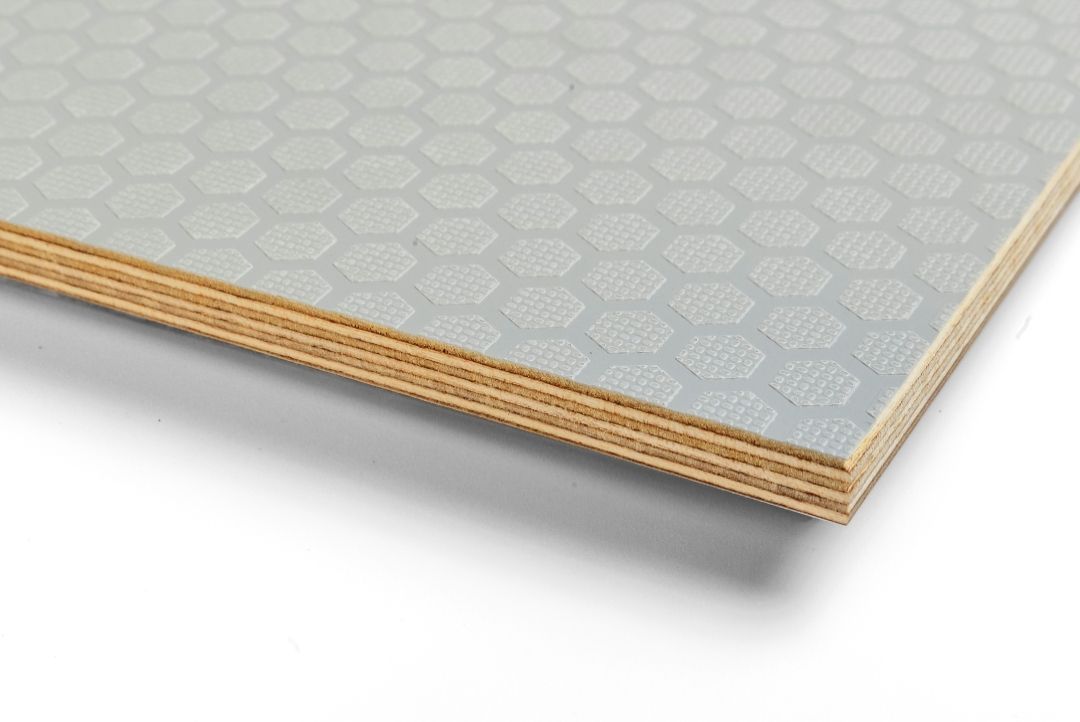

light grey Hexa plus plywood

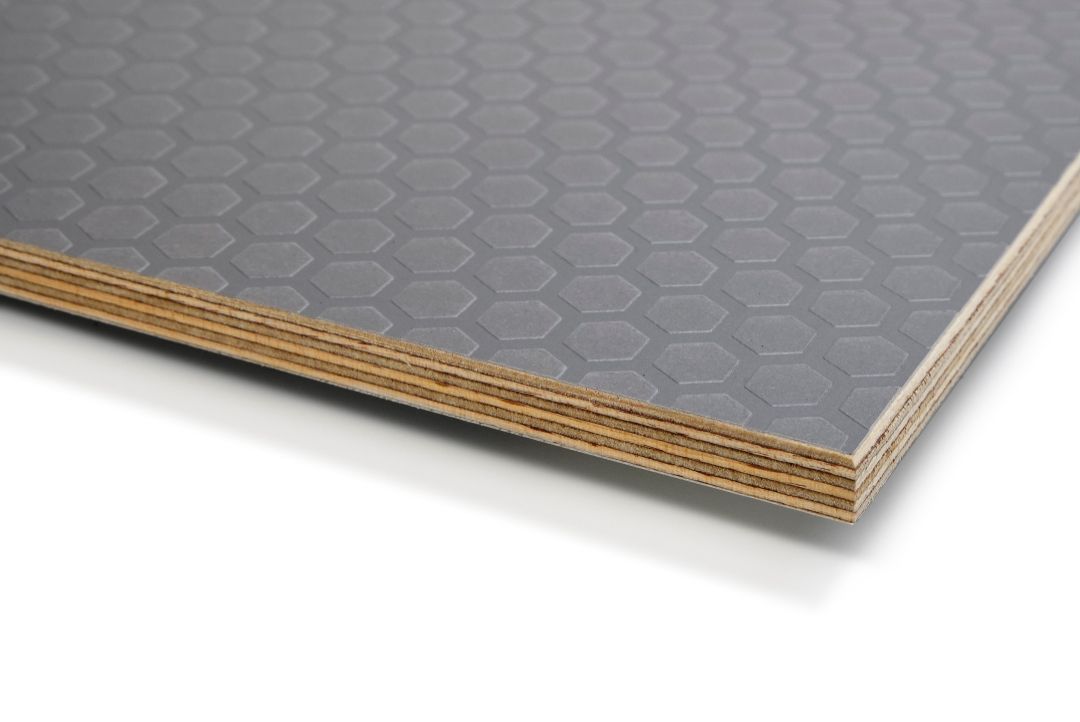

silver grey Hexa plus plywood

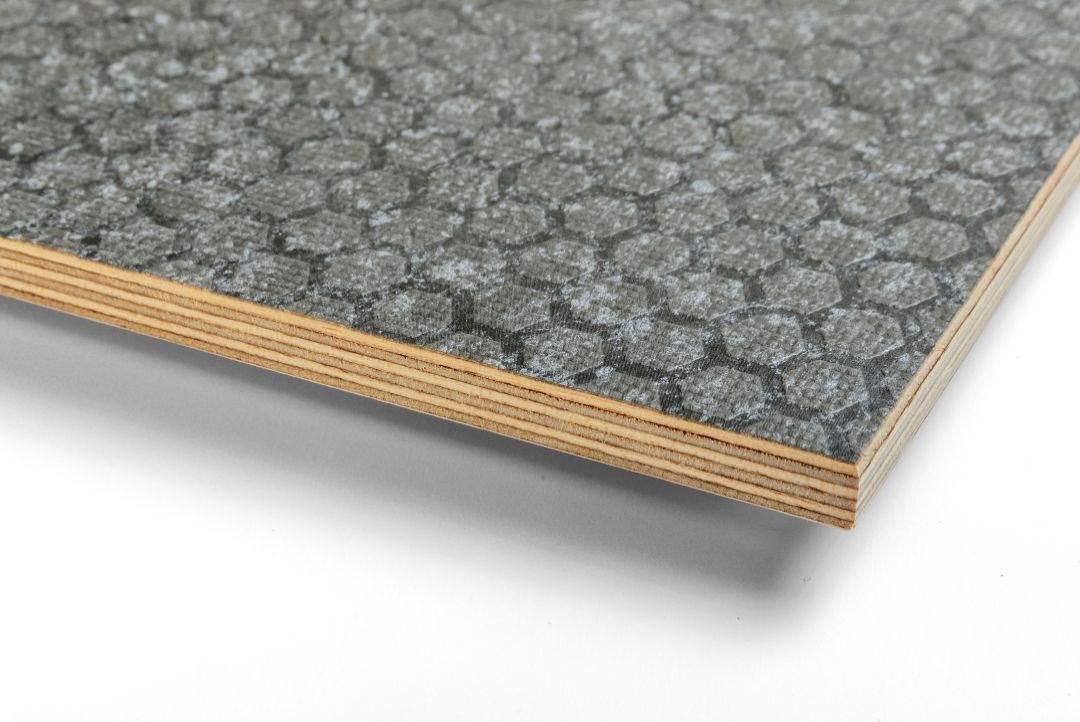

multi grey Hexa plus plywood

Phenolic Resin Overlay

Dark Brown - Black - Light Brown - Green - Yellow


Melamine Resin Overlay

Blue - Light Grey - Silver Grey - Multi-Grey

Hexa Plywood

Hexa Birch Plywood

Birch Plywood Core

120g, 220g or 240g Phenolic Film with Hexagon Pattern

Hexa is a more decorative panel than Hexa Plus and does not have anti-slip properties

Forward order only, in full packs

Colours

Light brown, green, yellow and blue also available

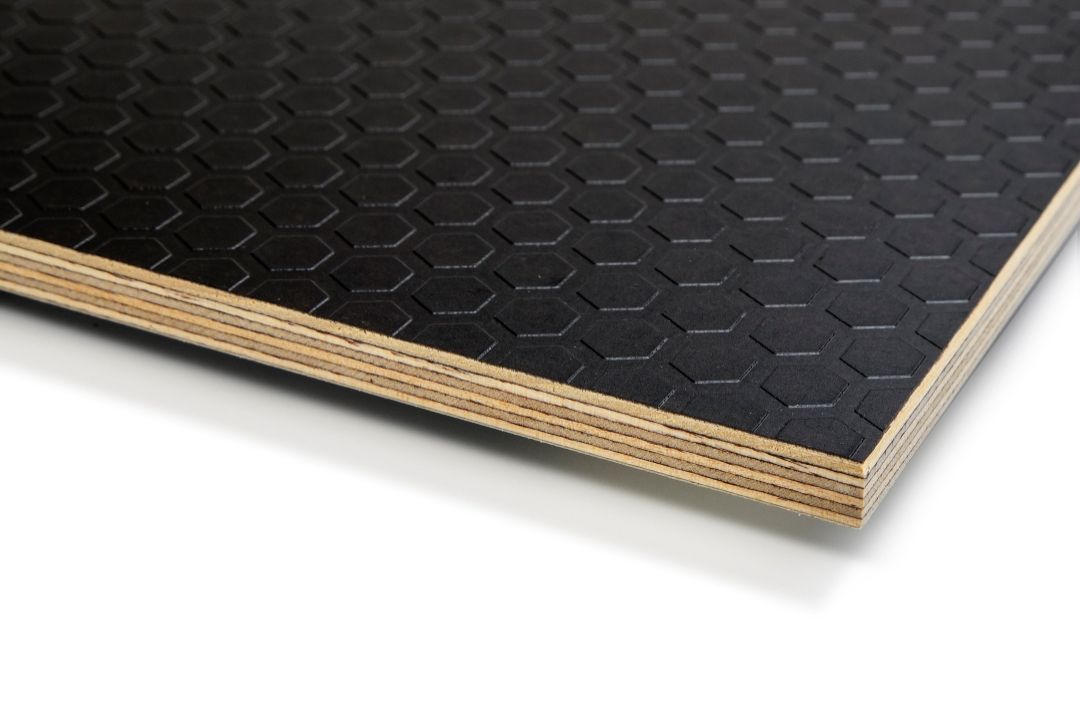

Dark Brown Hexa plus plywood
black Hexa plus plywood
light grey Hexa plus plywood
silver grey Hexa plus plywood

Phenolic Resin Overlay

Dark Brown - Black - Light Brown - Green - Yellow


Melamine Resin Overlay

Blue - Light Grey - Silver Grey - Multi-Grey

Applications

Vehicle Flooring

Durable and hard wearing

For trailer beds / trailer floors

Camper Van Fit Outs

Sliding campervan beds

Rock & Roll camper beds and storage units

Camper van furniture

Case Making

Flightcases made from birch hexa plywood

Durable and attractive finish with uni-directional pattern

Stage Flooring

Available in extra thick panels

Cut to size for metal frameworks

Excellent strength to weight ration

Not as rough textured as mesh - better suited to consumer use

Thickness & Packing

Thickness No. of Plies Small Packing Large Packing
6.5mm 5 ply 65 sheets 90 sheets
9mm 7 ply 44 sheets 65 sheets
12mm 9 ply 33 sheets 50 sheets
15mm 11 ply 26 sheets 40 sheets
18mm 13 ply 22 sheets 35 sheets
21mm 15 ply 19 sheets 30 sheets
24mm 17 ply 17 sheets 25 sheets
27mm 19 ply 14 sheets 22 sheets
30mm 21 ply 13 sheets 20 sheets
35mm 25 ply 12 sheets 17 sheets
40mm 29 ply 10 sheets 15 sheets

Plies

The number of laminations

1.4mm thick, laid-up with grain alternating at 90 degrees

Packing

Quantities shown are standard mill packing

For special order items, pack quantities can be altered

Panel Sizes

Popular sizes, usually held in stock

Metric Imperial
2440 x 1220 8ft x 4ft
1525 x 3050 5ft x 10ft

Sizes available from the mill

(Bespoke cut sizes also available)

Width (mm) Lengths (mm)
1220 or 1250 2440 / 2500 / 2745 / 3000 / 3050
1500 or 1525 2440 / 2500 / 2745 / 3000 / 3050

Stocked Items

Popular items, usually held in stock

Size Colour
6.5mm 1220 x 2440 Black Hexa Plus
9mm 1220 x 2440 Black Hexa Plus
12mm 1220 x 2440 Black Hexa Plus
15mm 1220 x 2440 Black Hexa Plus
18mm 1220 x 2440 Black Hexa Plus
9mm 1220 x 2440 Dark Brown Hexa Plus
12mm 1220 x 2440 Dark Brown Hexa Plus
12mm 1525 x 3050 Dark Brown Hexa Plus
18mm 1220 x 2440 Dark Brown Hexa Plus
21mm 1220 x 2440 Dark Brown Hexa Plus
9mm 1220 x 2440 Silver Grey Hexa Plus
12mm 1220 x 2440 Silver Grey Hexa Plus

Specifications

Hexa Faced Birch Plywood

Overlay

Phenolic resin or melamine

Moisture and chemical resistant. Does not crack

Available in 220g to 440g

Edge Sealing

Exterior acrylic paint to prevent moisture ingress

To match phenol face colour

Slip Rating

Conforms to anti-slip rating R9

According to DIN 51130

Weight

640-700 kg/m³

e.g. 18mm 8x4 weighs approx. 37kg

Wear Resistance

Rolling Test (EN 1818) more than 10,000 cycles

Taber Test (EN 438-2)

400 revolutions (120g film)

900 revolutions (240g film)

2,500 revolutions (440g film)

Bonding Quality

EN314-3 class 3 exterior conditions

Dark brown glue-line, phenol resin

Moisture Content

10% (+/- 2%) to EN315 and DIN 68705

Formaldehyde

In accordance with the standard EN 13986

the formaldehyde emission meets the Class E1 requirements

(test method EN 717 Part 2)

Cutting Service

Cut to size & CNC machined panels


We offer a full cutting and processing service

Router, drill, chamfer or machining

 Edges are sealed with external paint


From stock with UK-wide delivery

For more information on our cutting & machining services

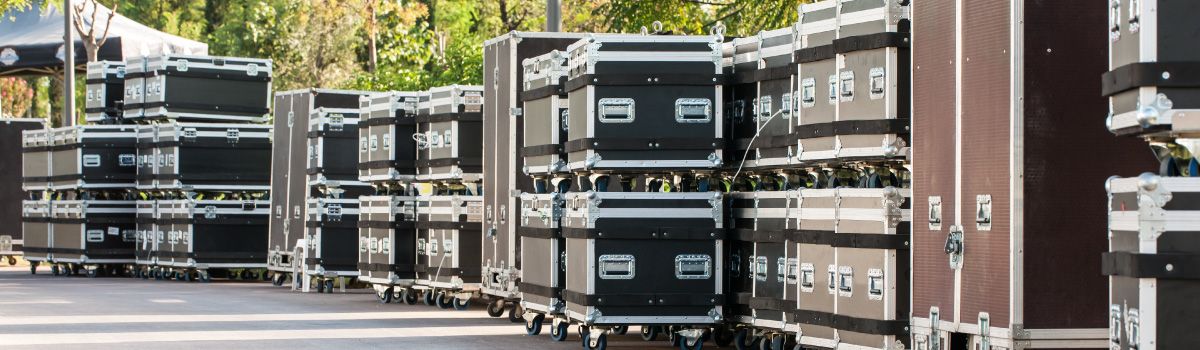

Flightcase Plywood

hexa ply for flightcases

Hexa plywood is a popular panel used to fabricate flightcases. Birch hexa plywood is an excellent choice for flightcase manufacturing due to its exceptional durability and strength-to-weight ratio. The plywood core provides stability and rigidity, making it particularly well-suited for protecting delicate equipment during transportation. Utilising birch hexa plywood in flightcase production ensures a high-quality, reliable, and long-lasting solution for safeguarding valuable equipment during travel.

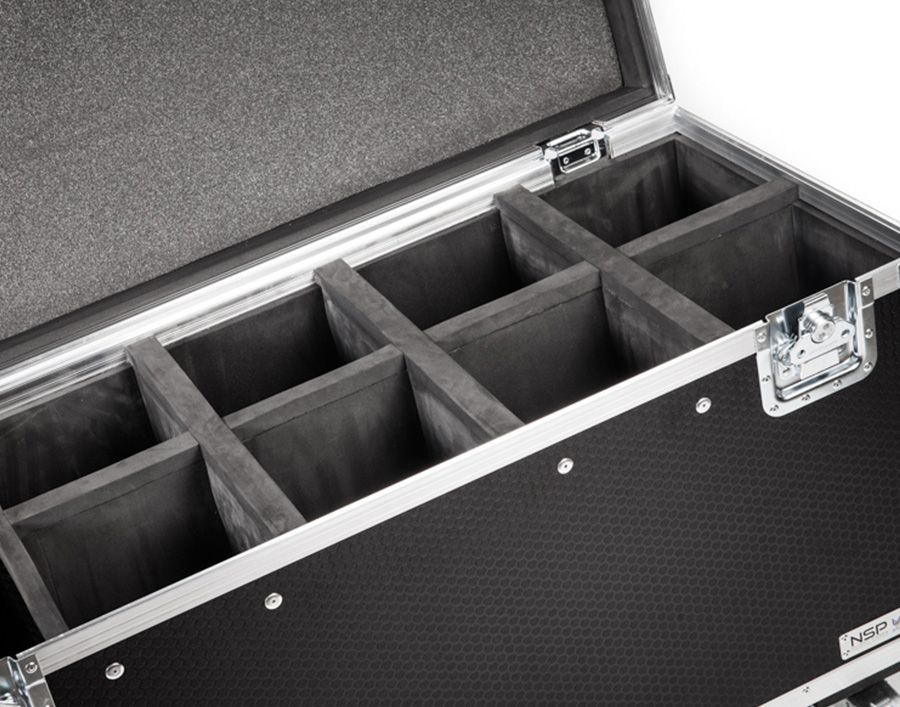

Case making plywood hexagon pattern

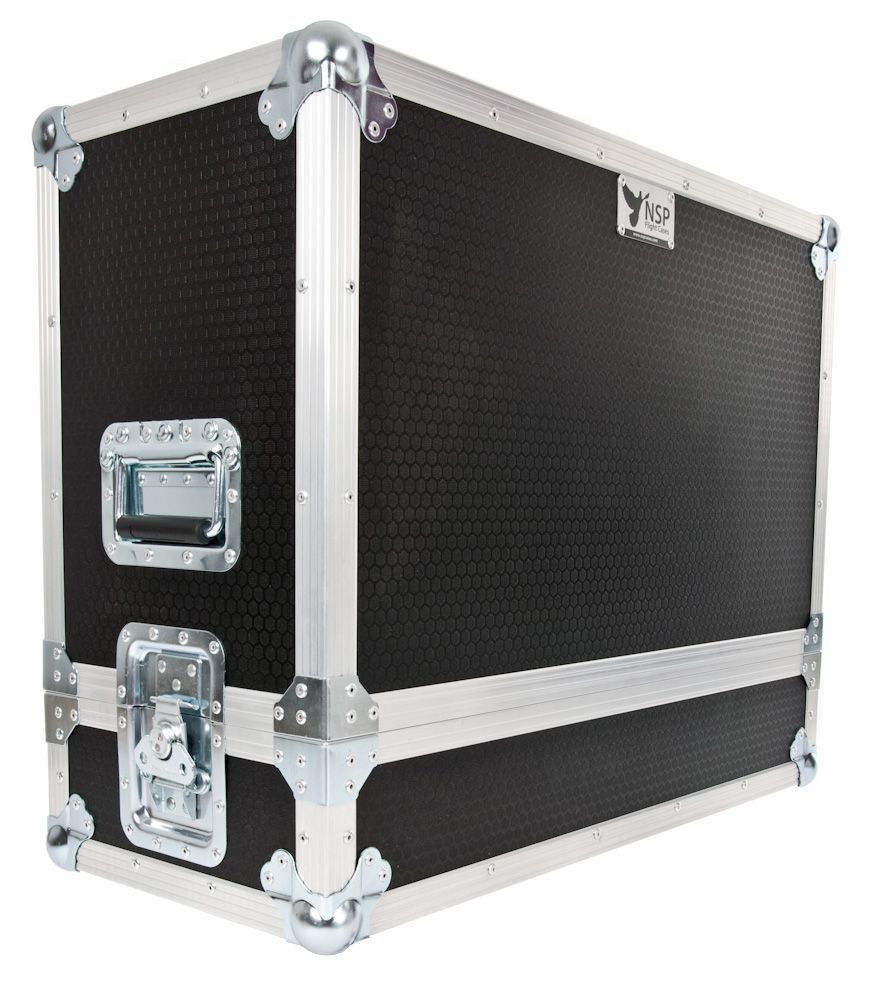

Birch hex ply for flight cases

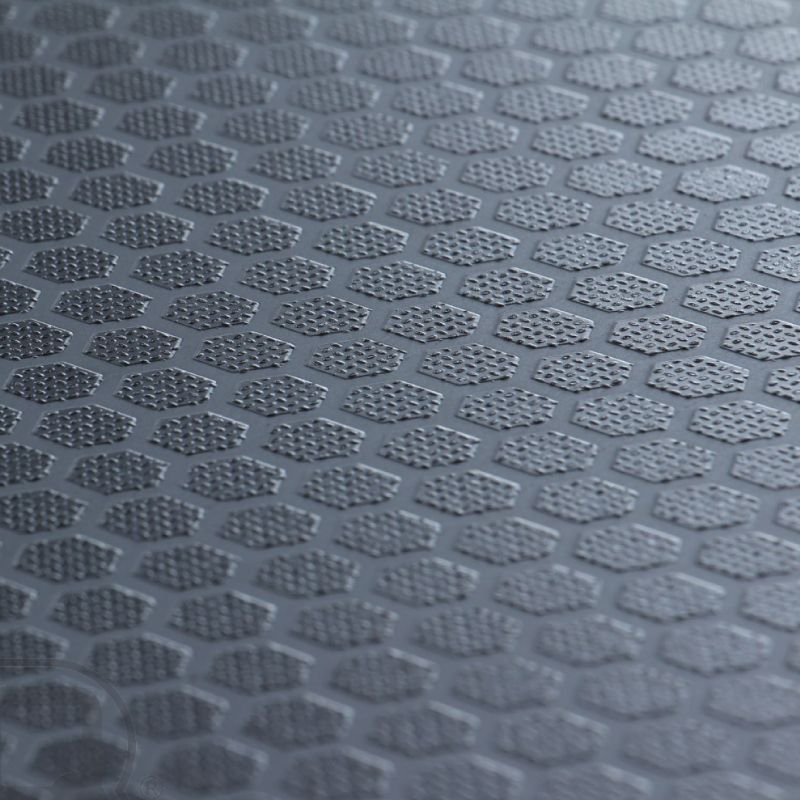

Hexaply surface

Case images courtesy of The Flight Case Company www.theflightcasecompany.com

Variations

Alternative non-slip phenol faced birch plywood

Other Coated Panels

Our range of overlaid birch plywood panels

Phenol Mesh

Phenol Smooth

Concrete Formwork

Sports Rebound

Hexa Plus

Hexa

HPL

Riga Frost

Riga Dot

Diamond

Timber

Prices

We deliver throughout the UK

Request a Quote

or contact us
